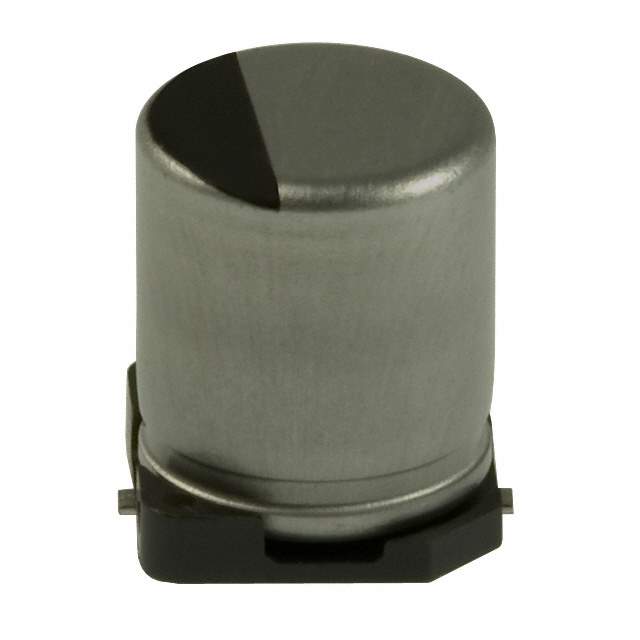

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 143 mA @ 120 Hz
Ripple Current @ High Frequency 243.1 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-1EA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE3898CT,PCE3898TR,PCE3898DKR,EEE1EA101XP
Standard Package 900
Win Source Part Number 1328530-EEE-1EA101XP
Ultra Librarian 3D Model Ultra Librarian EEE-1EA101XP CAD Model

Description

The Panasonic EEE-1EA101XP is an aluminum electrolytic capacitor that is part of the capacitors family.

  • Supply and Demand Status: Balanced
  • Capacitance: 100 µF
  • Voltage Rating: 25V
  • Temperature Range: -40°C to 85°C
  • Case/Package: Radial, Can - SMD
  • Application: Automotive
