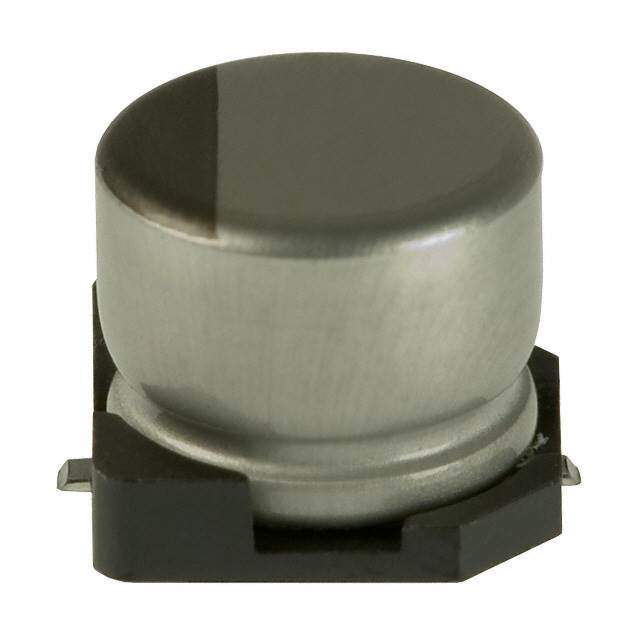

UWX1E330MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1E330MCL1GB

Part No UWX1E330MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 25V SMD / ALUMINUM ELECTROLYTIC CAPACITORS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nichicon
Packaging Reel
Capacitance 33μF
Tolerance ±20%
Voltage - Rated 25V
Lifetime at Temp. 2000 Hrs at 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 52mA at 120Hz
Ripple Current at High Frequency 78mA at 10kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801579-UWX1E330MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1E330MCL1GB CAD Model

Description

The 739909 is a surface mount aluminum electrolytic capacitor. It is manufactured by Nichicon.

  • Capacitance: 33μF ±20%
  • Voltage Rating: 25V
  • Polarization: Polarized
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Lifetime @ Temp: 2000 Hrs @ 85°C
  • Ripple Current @ Low Frequency: 52mA @ 120Hz
  • Ripple Current @ High Frequency: 78mA @ 10kHz
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Device Dimension: 0.248" Dia (6.30mm)
  • Package / Case: Radial, Can - SMD
  • Height Seated (Maximum): 0.213" (5.40mm)
