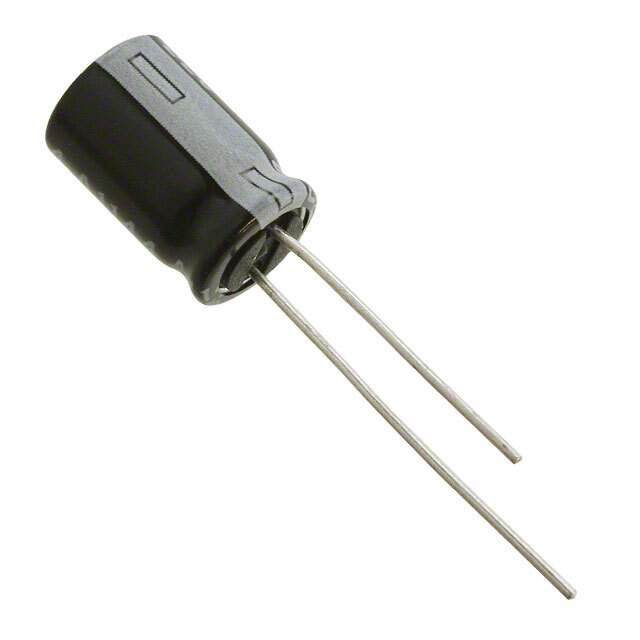

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series ZLG
Packaging Bulk
Capacitance 820μF
Tolerance ±20%
Voltage Rating DC 6.3V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 750mA @ 120Hz
Impedance 28 mOhm
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.689" (17.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 796193-6.3ZLG820MEFC8X16
Popularity Medium
Supply and Demand Status Limited
Family Name ZLG
Introduction Date October 14, 2005
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 6.3ZLG820MEFC8X16 CAD Model

Description

The Rubycon ZLG series is a radial, can type capacitor from Rubycon.

  • Capacitance: 820μF
  • Voltage Rating: 6.3V DC
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • Impedance: 28 mOhm
  • Ripple Current: 750mA @ 120Hz
  • Polarization: Polarized
  • Lifespan: 3000 hours @ 105°C
  • Application: General Purpose
  • Country of Manufacture: Japan
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
