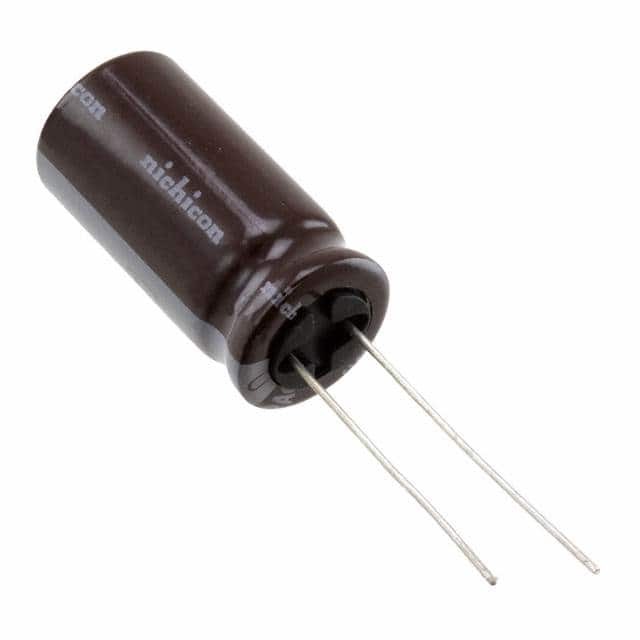

Same model may have multiple batches, images only for reference.
UPA1V122MHD
Same model may have multiple batches, images only for reference.

UPA1V122MHD

Part No UPA1V122MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 35V RADIAL / 1200 μF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UPA1V122MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPA
Package Bulk
Product Status Active
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.938 A @ 120 Hz
Ripple Current @ High Frequency 2.28 A @ 100 kHz
Impedance 22 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 800 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 938209-UPA1V122MHD
Ultra Librarian 3D Model Ultra Librarian UPA1V122MHD CAD Model

Description

The UPA1V122MHD is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 1200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 22 mOhms
  • Size: 0.492" Dia (12.50mm)
  • Height: 1.063" (27.00mm) when seated
  • Design: Polarized
  • Mounting: through-hole
  • Temperature Range: -55°C to 105°C
  • Manufacturer: Nichicon
  • Packaging: bulk packaging
  • Standard Package Size: 800 pcs
