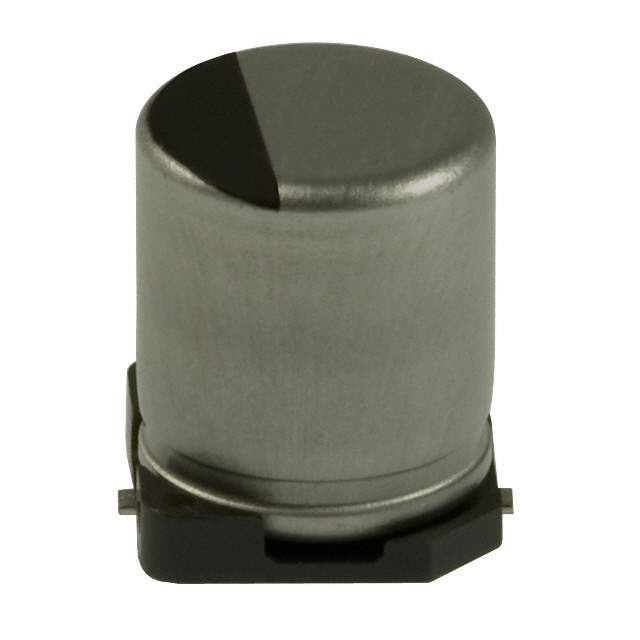

EEE-1CA221XP Real Image
Same model may have multiple batches, images only for reference.

EEE-1CA221XP

Part No EEE-1CA221XP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 162 mA @ 120 Hz
Ripple Current @ High Frequency 275.4 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-1CA
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338407-EEE-1CA221XP
Ultra Librarian 3D Model Ultra Librarian EEE-1CA221XP CAD Model

Description

The Panasonic Electronic Components EEE-1CA221XP is an aluminum electrolytic capacitor from the S series.

  • Series: S
  • Capacitance: 220 µF
  • Voltage Rating: 16 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 162 mA
  • Ripple Current (High Frequency): 275.4 mA
  • ESR: Not Specified
  • Lifetime @ 85°C: 2000 hours
  • Package Type: Radial, Can - SMD
  • Surface Mount Land Size: 0.260 inches L x 0.260 inches W
  • Height When Seated: 0.303 inches
  • Status: Not for New Designs
