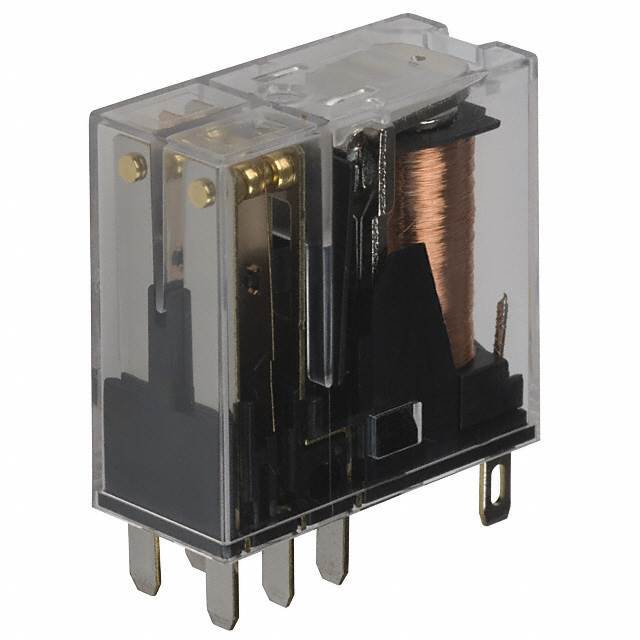

AHN211Y2N Panasonic
Same model may have multiple batches, images only for reference.

AHN211Y2N

Part No AHN211Y2N
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 240V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AHN
Package Box
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 240VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 4.1 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 192 VAC
Must Release Voltage 72 VAC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 59 Ohms
Base Product Number AHN211
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 560329-AHN211Y2N
Ultra Librarian 3D Model Ultra Librarian AHN211Y2N CAD Model

Description

The AHN211Y2N is a power relay from Panasonic's AHN series.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 5A
  • Contact Material: Silver nickel (AgNi)
  • Coil Voltage: 240VAC
  • Coil Resistance: 59 Ohms
  • Coil Current: 4.1 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Temperature Range: -40°C to 70°C
  • Mounting: Socketable for easy installation and has a mounting type of plug-in.
  • Indicator: Lighted indicator, allowing for easy visual confirmation of its status.
  • Overall: Reliable performance and high-quality construction, this power relay is an excellent choice for various electronic projects and applications.
