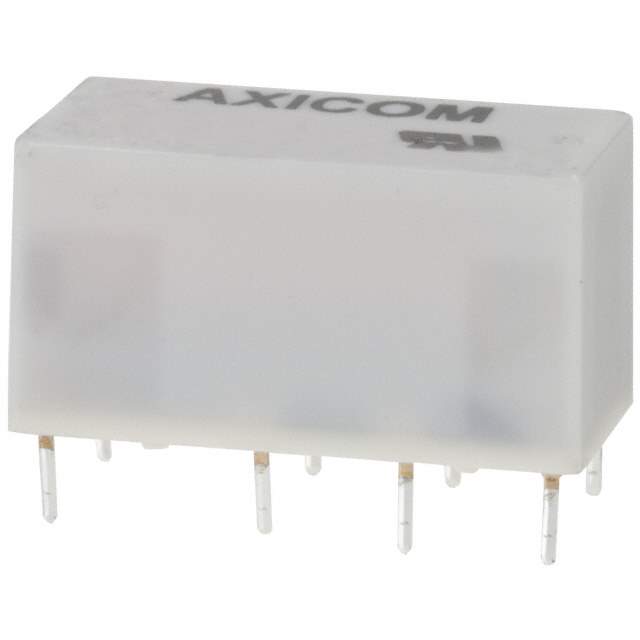

9-1393792-3 Real Image
Same model may have multiple batches, images only for reference.

9-1393792-3

Part No 9-1393792-3
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay DPDT 2A 5VDC 89Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Mounting SMD (SMT)
Case / Package DIP
Coil Current 40 mA
Coil Power 200 mW
Coil Resistance 125 Ω
Coil Type Non-Latching
Coil Voltage (AC) 5 V
Coil Voltage (DC) 5 V
Contact Current Rating 3 A
Contact Material Gold, Silver
Contact Plating Gold
Contact Resistance 100 mΩ
Current Rating 3 A
Depth 10 mm
ELV Compliant
Height 10.9 mm
Lead Free Yes
Length 20.2 mm
Max Current Rating 3 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 220 V
Min Operating Temperature -25 °C
Mount Through Hole
Number of Contacts 2
Number of Pins 8
Operate Time 5 ms
Packaging Box
Power Consumption 200 mW
Radiation Hardening No
Ratings IP67
RoHS Compliant
Switching Current 3 A
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 250 V
Voltage Rating (DC) 220 V
Width 10 mm
Win Source Part Number 1003483-9-1393792-3
Categories Power Relays,Over 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 9-1393792-3 CAD Model

Description

The 1003483-9-1393792-3 is a power relay from TE Connectivity.

  • Throw Configuration: DPDT
  • Current Rating: 3A
  • Coil Voltage: 5VDC
  • Power Consumption: 200mW
  • Contact Resistance: 100mΩ
  • Contact Current Rating: 3A
  • Coil Type: Non-Latching
  • Coil Resistance: 125Ω
  • Maximum Voltage Rating: 250VAC and 220VDC
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85°C
  • Mounting Package: Through-Hole
