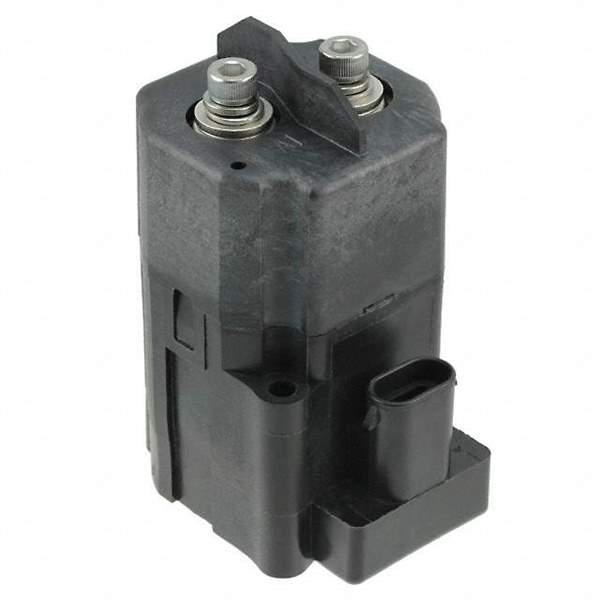

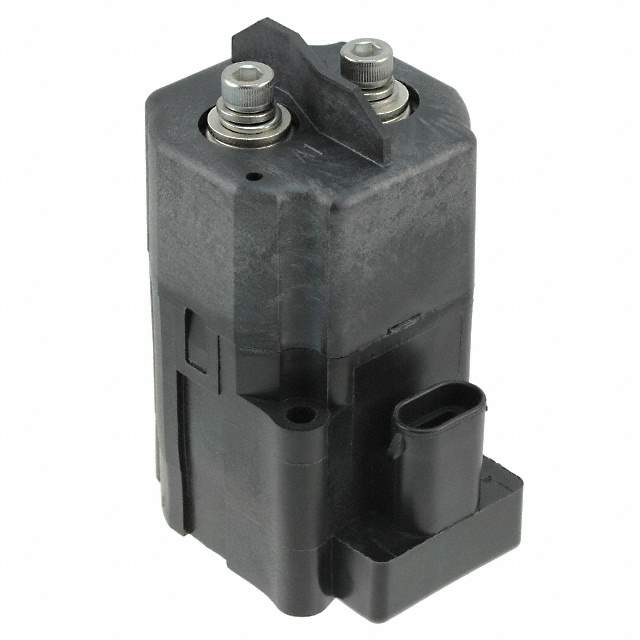

EV250-2B Real Image
Same model may have multiple batches, images only for reference.

EV250-2B

Part No EV250-2B
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 400A 24V / General Purpose Relay SPST-NO (DM) (1 Form X) 24VDC Coil Chassis Mount
Datasheet
EV250-2B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Aerospace, Defense and Marine
Series EV250, KILOVAC
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 400 A
Switching Voltage 1800VDC - Max
Coil Type Non Latching
Features Magnetic Blowout
Termination Style Stud
Must Operate Voltage 18 VDC
Must Release Voltage 10 VDC
Operate Time 18 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Relay Type General Purpose
Base Product Number EV250
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2-1618002-6-ND,2-1618002-6,A121830
Standard Package 1
Win Source Part Number 973948-EV250-2B
Ultra Librarian 3D Model Ultra Librarian EV250-2B CAD Model

Description

The EV250-2B is a general purpose relay manufactured by TE Connectivity Aerospace, Defense and Marine.

  • Temperature Range: -40°C to 85°C
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 400 A
  • Switching Voltage: 1800VDC - Max
  • Seal Rating: -
  • Mounting Type: Chassis
  • Features: Magnetic Blowout
  • Contact Form: SPST-NO (DM) (1 Form X)
  • Packaging: Bulk
  • Standard Package: 1
  • ECCN: EAR99
  • RoHS Compliant: No
