The STK672-442BN-E is a highly efficient, integrated unipolar 2-phase stepping motor driver from ON Semiconductor, which stands out in the market for its compact design and exceptional functionality. This hybrid IC enables smooth and precise control of stepping motors with its built-in micro-stepping controller and is widely used in various applications such as office automation machines, factory automation equipment, and other industrial machinery.
Key Features
- Integrated Micro-stepping Controller: The STK672-442BN-E comes with an onboard micro-stepping controller, providing more precise movement by dividing a full step into smaller steps, resulting in smoother motion and higher resolution positioning.
- High Voltage and Current Rating: This driver IC is capable of operating at high voltages up to 44V, with an output current rating of 1.5A, making it suitable for a wide range of motor specifications.

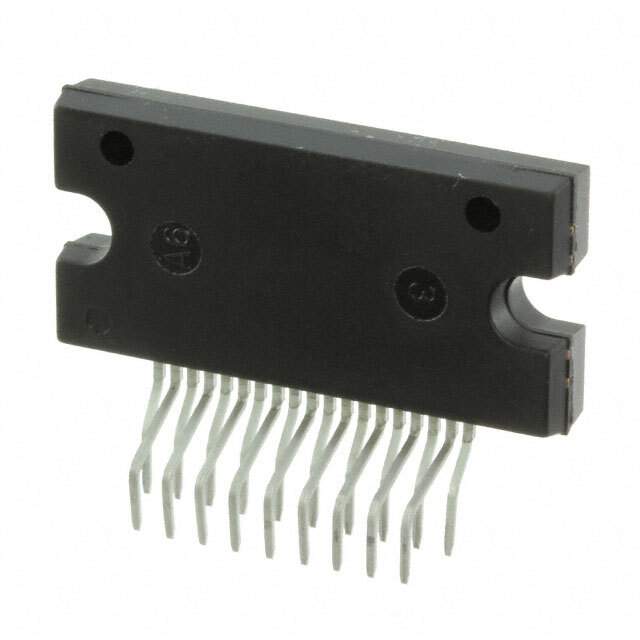

- Compact Package: The device is housed in a compact 23-pin SIP package, which saves space on the PCB and simplifies the design process.
- Excellent Power Efficiency: ON Semiconductor's advanced circuit design ensures reduced power consumption and heat generation, which enhances the overall efficiency and reliability of the motor driver.
- Protection Features: The STK672-442BN-E is equipped with multiple protection features, including thermal shutdown (TSD), over-current (ISD), and under-voltage lockout (UVLO), safeguarding the IC against potential damage from abnormal operating conditions.
Applications
The versatility of the STK672-442BN-E makes it an ideal choice for a broad range of applications. It is particularly well-suited for:
- Office automation machines such as printers, copiers, and scanners
- Factory automation equipment including CNC machines and robotic arms
- Textile machinery
- Medical devices requiring precise motor control
In conclusion, the STK672-442BN-E stepping motor driver from ON Semiconductor offers a blend of performance, efficiency, and reliability for designers looking to enhance the capabilities of their motor-driven applications. With its advanced features and robust protection mechanisms, this driver IC is an excellent choice for driving 2-phase bipolar stepper motors in a variety of industrial and commercial products.
