Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer ON Semiconductor
Main Purpose DC/DC, Negative Inverter
Outputs and Type 1, Non-Isolated
Voltage - Output -12V
Output Current 50mA
Voltage - Input 5V
Regulator Topology Inverting
Frequency - Switching 100kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MC34063
Win Source Part Number 763340-MC34063SMDINVEVB
Popularity Medium
Supply and Demand Status Balance
Family Name MC34063
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MC34063SMDINVEVB CAD Model

Description

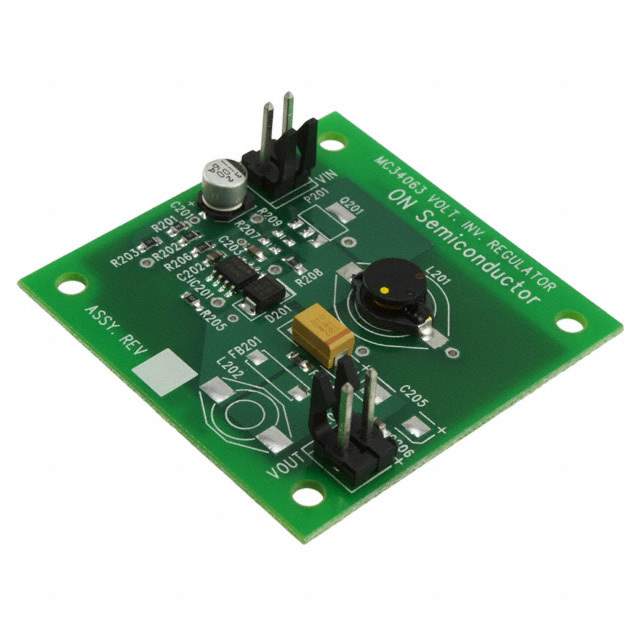

The MC34063SMDINVEVB from ON Semiconductor is a comprehensive evaluation board designed for engineers and developers to assess the capabilities of the MC34063A, an adaptive DC-DC converter integrated circuit. This versatile evaluation board is an excellent tool for prototyping and testing switch-mode power supply designs that require an inverting buck-boost configuration.

Key Features:

  • Flexible Power Management: The MC34063A IC enables efficient voltage regulation across a wide range of input voltages, making it ideal for applications that require variable power sources.
  • Inverting Buck-Boost Converter: This evaluation board is specifically configured to demonstrate the inverting buck-boost topology, providing a negative output voltage from a positive input voltage.
  • Compact SMD Package: The board utilizes a surface-mount device (SMD) package, which saves space and is suitable for modern, compact electronic designs.
  • Adjustable Output: Users can easily adjust the output voltage and current to meet the requirements of their specific application, providing a versatile platform for design and experimentation.
  • On-board Components: The board comes equipped with all necessary components, including resistors, capacitors, and diodes, to facilitate immediate testing and evaluation.

Applications:

The MC34063SMDINVEVB is suited for a variety of applications, including but not limited to:

  • Power supply modules
  • Battery-powered devices
  • Portable electronics
  • Automotive applications
  • Industrial control systems

With its user-friendly design and comprehensive documentation, the MC34063SMDINVEVB evaluation board is an invaluable resource for professionals seeking to develop power solutions with ON Semiconductor's MC34063A DC-DC converter. Whether for educational purposes, design validation, or rapid prototyping, this evaluation board simplifies the process of creating efficient, reliable power management systems.
