Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Status Obsolete
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 100V
Id - Continuous Drain Current 10A
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 160mOhm at 10A, 10V
Gate Source Voltage(th) (Maximum) at Id 3V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 16nC at 10V
Gate Source Voltage (Maximum) ±16V
Input Capacitance (Ciss) (Maximum) at Vds 425pF at 25V
Power Dissipation (Maximum) 49W
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole

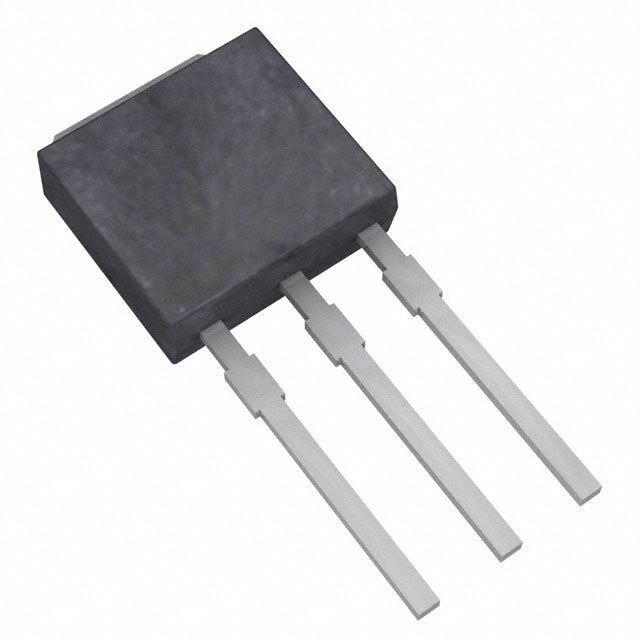

Supplier Device Package I-PAK
Manufacturer Package TO-251-3 Short Leads, IPak, TO-251AA
Manufacturer Pack Quantity 75
MSL Level 1 (Unlimited)
Win Source Part Number 1182474-HUF76609D3
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HUF76609D3 CAD Model

Description

Product Overview: HUF76609D3 - ON Semiconductor

The HUF76609D3 is a robust power MOSFET designed and manufactured by ON Semiconductor, known for its high efficiency and reliability in a variety of applications. This N-Channel MOSFET is an ideal choice for designers looking for a component that can handle significant power levels while maintaining thermal stability and energy efficiency.

Key Features

  • High Current Handling: With a continuous drain current rating of up to 75A, the HUF76609D3 is capable of supporting high current applications without compromising performance.
  • Low On-Resistance: The device features a low RDS(on) value, which minimizes on-state power losses and enhances overall efficiency, making it suitable for power-intensive operations.
  • High Voltage Tolerance: It can sustain a drain-source voltage (VDS) of up to 60V, providing a good safety margin for fluctuating supply conditions.
  • Advanced Packaging: HUF76609D3 comes in a TO-252 (DPAK) package, known for its compact footprint and excellent thermal performance, suitable for space-constrained applications.

Applications

The versatility of the HUF76609D3 allows it to be used in a wide range of applications, including:

  • Power supplies and DC-DC converters
  • Motor drives and controllers
  • Automotive systems
  • Switching regulators
  • Power management systems

Quality and Reliability

ON Semiconductor ensures that all its products, including the HUF76609D3, meet the highest quality and reliability standards. The device undergoes rigorous testing and quality control measures to provide consistent performance and longevity, which is critical for industrial and automotive applications where failure is not an option.

Environmental Compliance

The HUF76609D3 is compliant with RoHS and Halogen-Free standards, reflecting ON Semiconductor's commitment to environmental sustainability. Customers can be assured that they are choosing a product that not only meets their performance needs but also aligns with global environmental regulations.
