Products specifications

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr onsemi
Package Tube
Product Status Obsolete
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Bi-CMOS
Applications General Purpose
Current - Output 3A
Voltage - Supply 3V ~ 5.5V
Voltage - Load 9V ~ 35V
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting SMD (SMT)

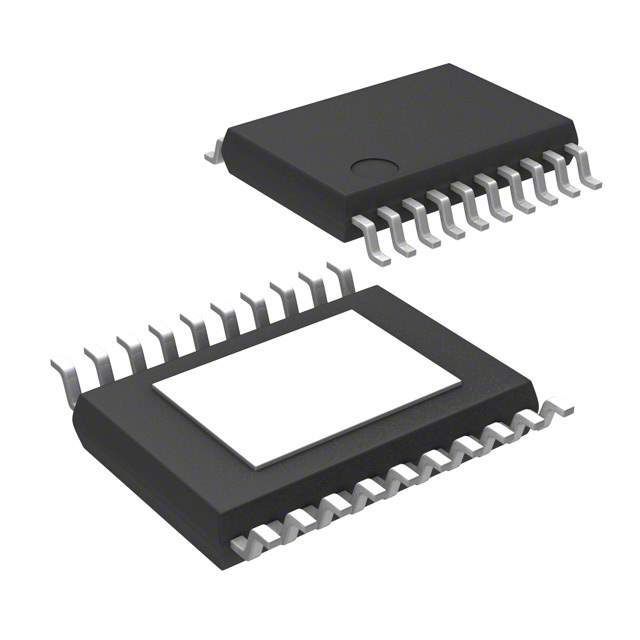

Package / Case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 20-TSSOPJ
Base Product Number LV876
Other Names LV8760TMPBE,ONSONSLV8760T-MPB-E,2156-LV8760T-MPB-E-ON,LV8760T-MPB-EOS
Standard Package 70
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253356-LV8760T-MPB-E
Ultra Librarian 3D Model Ultra Librarian LV8760T-MPB-E CAD Model

Description

The ON Semiconductor LV8760T-MPB-E is a cutting-edge motor driver that is designed to meet the needs of modern, compact, and efficient motor control applications. This versatile driver is capable of handling a wide range of motor types, making it an ideal solution for designers looking to implement a motor control system with minimal complexity and maximum reliability.

Key Features

  • High Voltage Tolerance: The LV8760T-MPB-E can handle motor supply voltages up to 46V, providing the flexibility needed for a variety of industrial and consumer applications.
  • Integrated Dual H-Bridge: The driver comes with two H-bridge circuits, which are essential for bidirectional control of two DC motors or one stepping motor.
  • Thermal Shutdown Protection: With built-in thermal shutdown circuitry, the LV8760T-MPB-E ensures that the device and your application are protected from overheating.
  • Low RDS(on) MOSFETs: The use of low on-resistance MOSFETs ensures efficient operation with reduced heat dissipation, which is crucial for maintaining the longevity of the device.

Applications

The versatility of the LV8760T-MPB-E makes it suitable for a wide range of applications, including but not limited to:

  • Office automation machines
  • Home appliances
  • Battery-powered devices
  • Industrial equipment

Technical Specifications

Parameter Value Motor Supply Voltage (VM) 10 to 46V Output Current (IO) Up to 1A Operating Temperature Range -40°C to +150°C Package HTSSOP-B28

By integrating the LV8760T-MPB-E into your design, you gain the advantage of ON Semiconductor's renowned quality and performance, ensuring that your end product operates with the highest level of reliability and efficiency.
