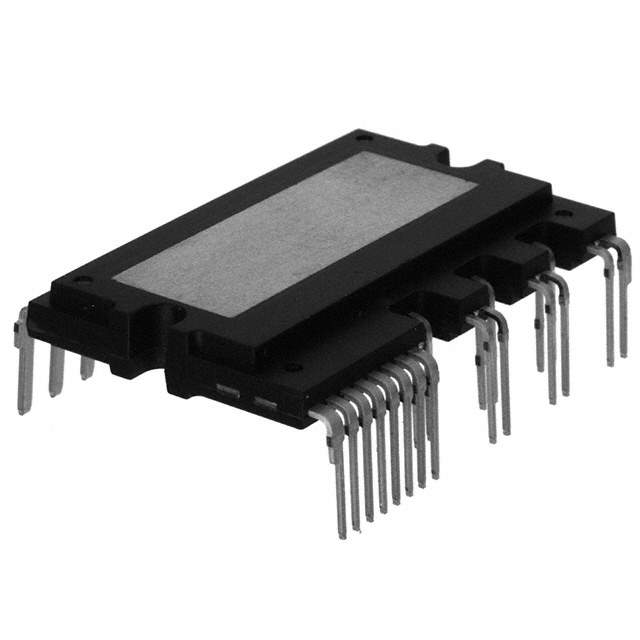

ON Semiconductor FPDB40PH60B Smart Power Module

The FPDB40PH60B, part of ON Semiconductor's innovative power solutions, is a highly integrated smart power module that exemplifies efficiency and reliability in a compact package. This intelligent power module is designed to cater to the demanding needs of high-performance power conversion applications.

Key Features:

• Intelligent Power Module: The FPDB40PH60B is equipped with IGBTs and a diode power stage, integrating control and protection circuitry to provide an all-in-one power solution.
• High Voltage and Current Rating: With a 600V and 40A rating, this module is capable of handling robust power requirements, making it suitable for a wide range of applications.
• Energy Efficient: The module is designed for minimal power loss, featuring low V<sub>CE(sat) IGBTs, which contribute to its high efficiency.
• Compact Design: The FPDB40PH60B comes in a compact DIP package, allowing for a smaller footprint and easier integration into various system designs.
• Overcurrent Protection: With built-in overcurrent protection, the module ensures safe operation under abnormal conditions, enhancing the longevity and reliability of the application.
• Isolation: The module provides excellent electrical isolation between the high-power and low-power signal levels, minimizing the risk of electrical interference.
• Temperature Monitoring: An integrated temperature sensor allows for real-time temperature monitoring, which is crucial for preventing thermal overload.

Applications:

The FPDB40PH60B is ideal for a variety of applications where efficient power conversion is necessary. These include:

• Motor Drives
• Power Supplies
• Renewable Energy Systems
• Uninterruptible Power Supplies (UPS)
• Industrial Automation

With its robust design and integrated features, the ON Semiconductor FPDB40PH60B Smart Power Module represents a superior solution for designers looking to enhance system performance while reducing development time and costs. Its comprehensive protection features and high integration level make it a valuable component for any power management system.
