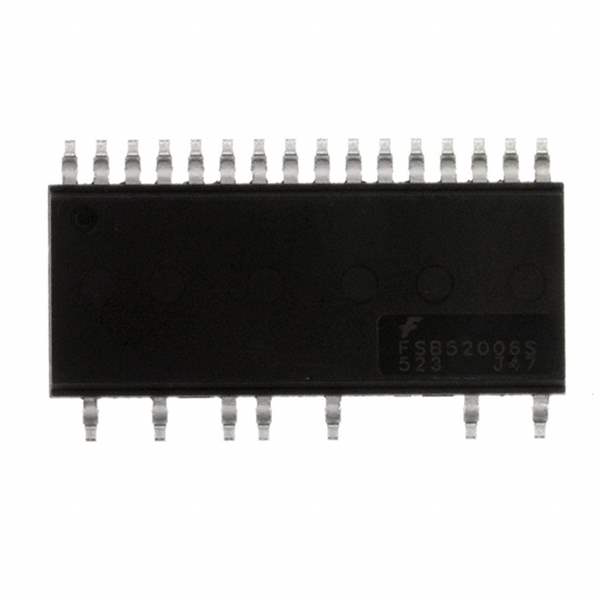

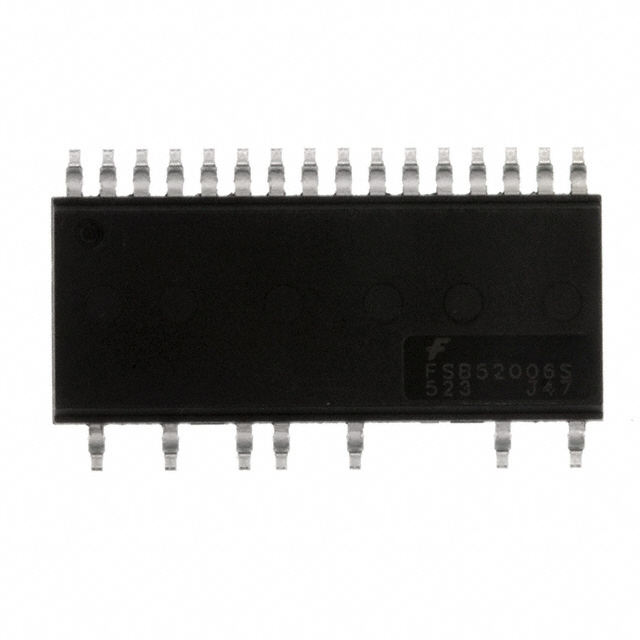

FSB52006S

Part No FSB52006S
Manufacturer ON Semiconductor
Catalog Power Drivers - Modules
Description Smart Power Module (SPM) | MODULE SPM 60V 2.6A SPM5D
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Type MOSFET
Configuration 3 Phase
Current 2.6A
Voltage 60V
Voltage - Isolation 1500Vrms
Manufacturer Package 23-PowerSMD Module, Gull Wing
Manufacturer Pack Quantity 450
MSL Level 3 (168 Hours)
Win Source Part Number 1175881-FSB52006S
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FSB52006S CAD Model

Description

The FSB52006S is a cutting-edge power semiconductor device manufactured by ON Semiconductor, a leading provider in the industry known for its innovative and reliable products. This particular model is part of the Smart Power Module (SPM) series and is designed to offer a compact, high-efficiency solution for advanced electronic applications.

Key Features:

  • Integrated Design: The FSB52006S integrates multiple components into a single module. This includes IGBTs, diodes, and driver circuitry, which simplifies the overall design and reduces the footprint on the PCB.
  • High-Efficiency: With its advanced IGBT technology, the module ensures low conduction and switching losses, which enhances the overall efficiency of the system it is used in.
  • Thermal Management: The module comes with an optimized thermal design that allows for efficient heat dissipation, thus improving reliability and performance under varying operating conditions.
  • Easy Implementation: The FSB52006S is designed for ease of use, with a built-in bootstrap diode and dedicated high voltage level shifting, which facilitates straightforward implementation into various circuit configurations.
  • Robust Performance: The module is engineered to withstand harsh environments and is characterized by its high ruggedness and durability, making it suitable for industrial applications.

Applications:

The versatility of the FSB52006S allows it to be used in a wide range of applications. It is particularly well-suited for:

  • Motor drives and inverters
  • Power supplies
  • Renewable energy systems like solar inverters and wind turbines
  • UPS systems
  • Industrial automation equipment

In conclusion, the FSB52006S from ON Semiconductor represents a blend of innovation, efficiency, and practicality. It is an excellent choice for designers and engineers looking to enhance system performance while maintaining a compact and reliable design. With its robust construction and integrated features, the FSB52006S is poised to meet the demands of a dynamic and energy-conscious market.
