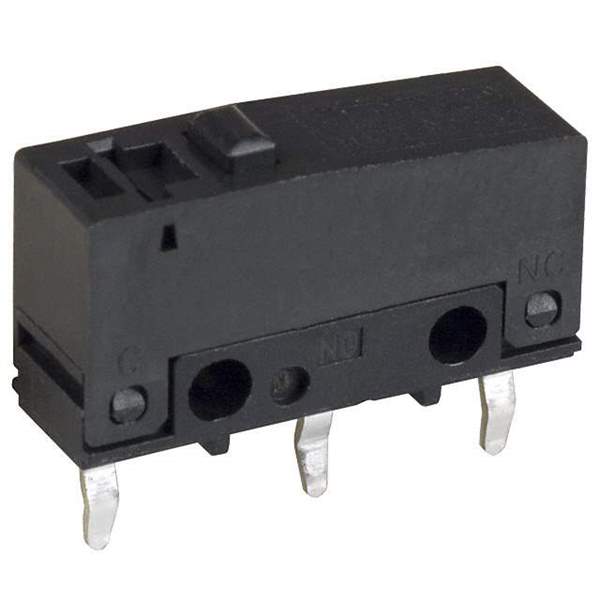

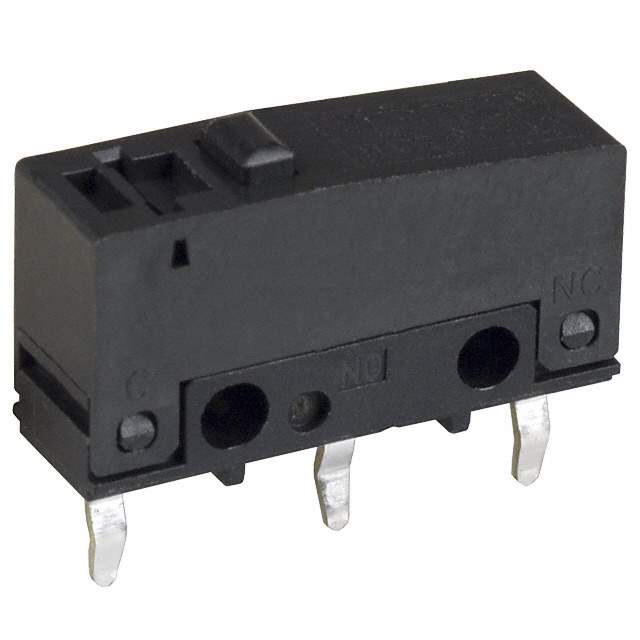

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 153gf
Release Force 20gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.006" (0.15mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-3GP
Other Names SW772,SS3GPBBYOMZ,SS-3GPB BY OMZ,SS3GPB,2266-SS-3GPB
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233410-SS-3GPB
Ultra Librarian 3D Model Ultra Librarian SS-3GPB CAD Model

Description

This Omron Electronics Inc-EMC Div product is a limit switch with the part number 1233410-SS-3GPB.

  • Circuit: SPDT
  • Current Rating: 3A (AC/DC)
  • Actuator Type: Round (pin plunger)
  • Temperature Range: -25°C to 85°C
  • Packaging: Tray
  • Standard Package: 1,000
