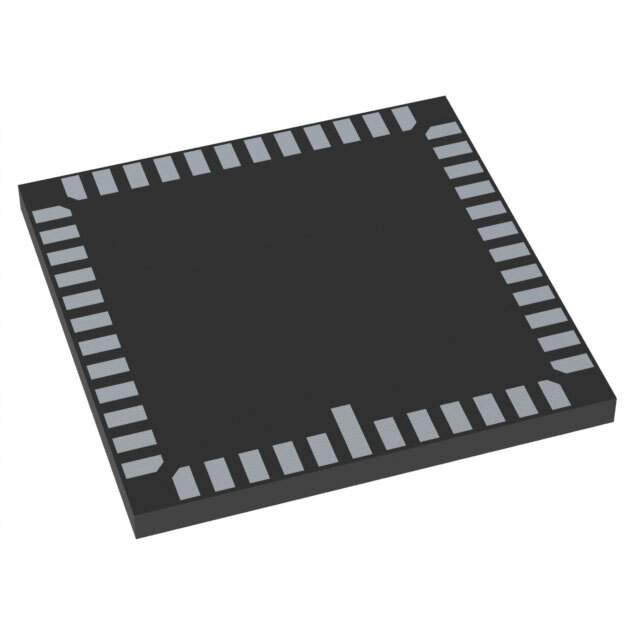

AR0237CSSC00SPRA0-DR

Part No AR0237CSSC00SPRA0-DR
Manufacturer ON Semiconductor
Catalog Image Sensors, Camera
Description IMAGE SENSOR 2MP 1/3 CIS SO / CMOS Image Sensor 1920H x 1080V 3µm x 3µm 48-PLCC (11.43x11.43)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Image Sensors, Camera
Mfr onsemi
Package Tray
Product Status Last Time Buy
Type CMOS
Pixel Size 3µm x 3µm
Active Pixel Array 1920H x 1080V
Frames per Second 60
Voltage - Supply 1.8V, 2.8V
Package / Case 48-PLCC
Supplier Device Package 48-PLCC (11.43x11.43)
Temperature Range - Operating -30°C ~ 85°C
Base Product Number AR0237
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Other Names 2156-AR0237CSSC00SPRA0-DR-OS,ONSONSAR0237CSSC00SPRA0-DR
Standard Package 1,520
Win Source Part Number 1014728-AR0237CSSC00SPRA0-DR
Ultra Librarian 3D Model Ultra Librarian AR0237CSSC00SPRA0-DR CAD Model

Description

ON Semiconductor AR0237CSSC00SPRA0-DR Image Sensor

The ON Semiconductor AR0237CSSC00SPRA0-DR is a cutting-edge CMOS digital image sensor with an active-pixel array of 1928(H) x 1088(V). This sensor is designed to deliver superior image quality in a wide range of lighting conditions, making it an ideal choice for high-performance applications such as surveillance, scanning, and industrial automation.

Featuring a 1/2.7-inch optical format, the AR0237 sensor provides a versatile balance between high resolution and compact design, ensuring compatibility with a variety of camera systems. Its advanced pixel technology offers excellent low-light performance, which is crucial for security and monitoring applications that require 24/7 operation.

The sensor operates at a maximum frame rate of 60 frames per second (fps) at full resolution, which allows for smooth video capture and accurate motion detection. Moreover, it supports linear and high dynamic range (HDR) modes, enabling it to handle challenging high-contrast scenes without losing detail in the shadows or highlights. This is particularly important in outdoor environments where lighting conditions can change rapidly.

With a pixel size of 3.0 µm x 3.0 µm, the AR0237 sensor achieves a perfect balance between sensitivity and resolution. It also includes advanced features such as automatic exposure control, automatic white balance, and automatic black level calibration, which simplify camera system design and reduce the need for additional processing power.

The AR0237CSSC00SPRA0-DR comes in a CSP-67 package and is designed for easy integration into a wide range of camera systems. It is also equipped with a Serial Peripheral Interface (SPI) and a four-lane MIPI CSI-2 interface, ensuring high-speed data transfer and compatibility with modern processors.

ON Semiconductor's commitment to quality and performance is reflected in the AR0237 image sensor, making it a reliable and efficient choice for developers and manufacturers looking to enhance their camera systems with state-of-the-art imaging capabilities.
