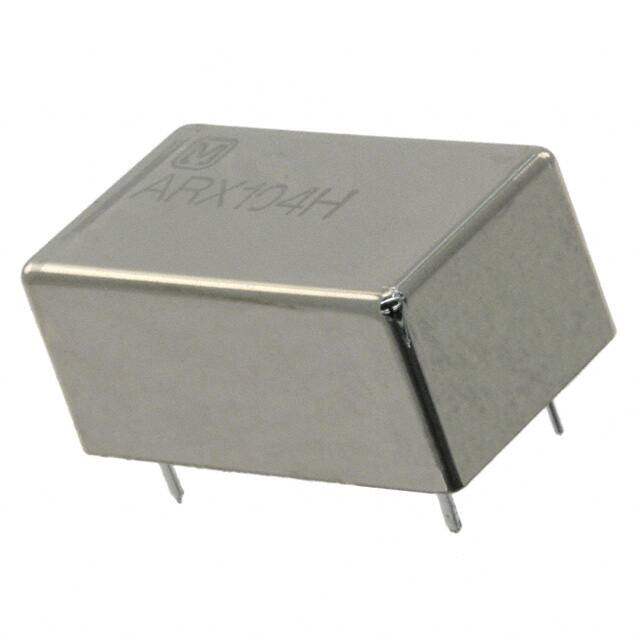

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARX
Package Box
Product Status Obsolete
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 6 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Base Product Number ARX10
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 564519-ARX104H
Ultra Librarian 3D Model Ultra Librarian ARX104H CAD Model

Description

The Panasonic ARX104H is a high-frequency (RF) relay designed for precision applications.

  • Contact Form: Single-pole, double-throw (SPDT)
  • Contact Plating: Gold plating
  • Coil Resistance: 101 Ohms
  • Coil Current: 44.4 mA
  • Operate Time: 10 ms
  • Release Time: 6 ms
  • Coil Type: Non-latching
  • Coil Voltage: 4.5VDC
  • Contact Rating: 500 mA
  • Switching Voltage: Up to 30VDC
  • Mounting: Through-hole
  • Termination: PC pin
  • Status: Obsolete
  • Series: Panasonic ARX series
