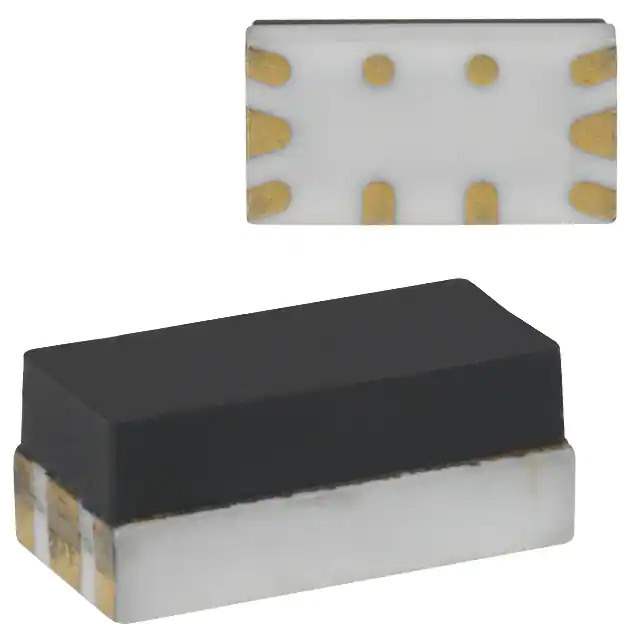

CRF05-1A Real Image
Same model may have multiple batches, images only for reference.

CRF05-1A

Part No CRF05-1A
Manufacturer Standex-Meder Electronics
Catalog High Frequency (RF) Relays
Description RELAY RF SPST-NO 500MA 5V
Datasheet
CRF05-1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Standex-Meder Electronics
Series CRF
Package Tape & Reel
Product Status Active
Coil Type Non Latching
Coil Current 33.3 mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 170VAC, 170VDC - Max
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.75 VDC
Operate Time 0.1 ms
Release Time 0.02 ms
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 125°C
Coil Power 167mW
Coil Resistance 150 Ohms
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 580367-CRF05-1A
Ultra Librarian 3D Model Ultra Librarian CRF05-1A CAD Model

Description

The CRF05-1A is a high-frequency relay from Standex-Meder Electronics.

  • Mounting: Surface mount
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 500mA
  • Coil Voltage: 5VDC
  • Coil Resistance: 150 ohms
  • Switching Voltage (max): 170VAC and 170VDC
  • Release Time: 0.02ms
  • Package: Tape and reel
  • Standard Package Size: 1,000 pcs
  • Operating Temperature: -40°C to 125°C
