Same model may have multiple batches, images only for reference.

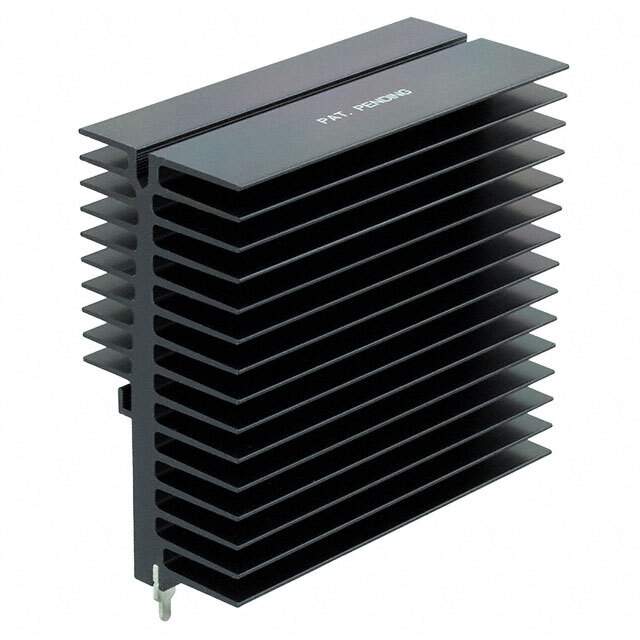

CR201-75AE Real Image
Same model may have multiple batches, images only for reference.

CR201-75AE

Part No CR201-75AE
Manufacturer Ohmite
Catalog Thermal - Heat Sinks
Description ALUMINUM HEATSINK 75MM BLK ANODI / Heat Sink TO-201 Aluminum Alloy Board Level, Vertical
Datasheet
CR201-75AE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Ohmite
Series CR
Package Box
Type Board Level, Vertical
Package Cooled TO-201
Attachment Method 3 Clips and PC Pin
Shape Rectangular, Fins
Length 2.953" (75.00mm)
Width 2.953" (75.00mm)
Thermal Resistance @ Natural 2.60°C/W
Material Aluminum Alloy
Material Finish Black Anodized
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 4
Win Source Part Number 1016937-CR201-75AE
Ultra Librarian 3D Model Ultra Librarian CR201-75AE CAD Model

Description

The Ohmite CR series heat sink is made of aluminum alloy with a black anodized finish.

  • Manufacturer: Ohmite
  • Series: CR
  • Material: Aluminum Alloy
  • Finish: Black Anodized
  • Thermal Resistance: 2.60°C/W
  • Package Cooled: TO-201
  • Length: 2.953" (75.00mm)
  • Width: 2.953" (75.00mm)
  • Shape: Rectangular, Fins
  • Type: Board Level, Vertical
  • Attachment Method: 3 Clips, PC Pin
