Same model may have multiple batches, images only for reference.

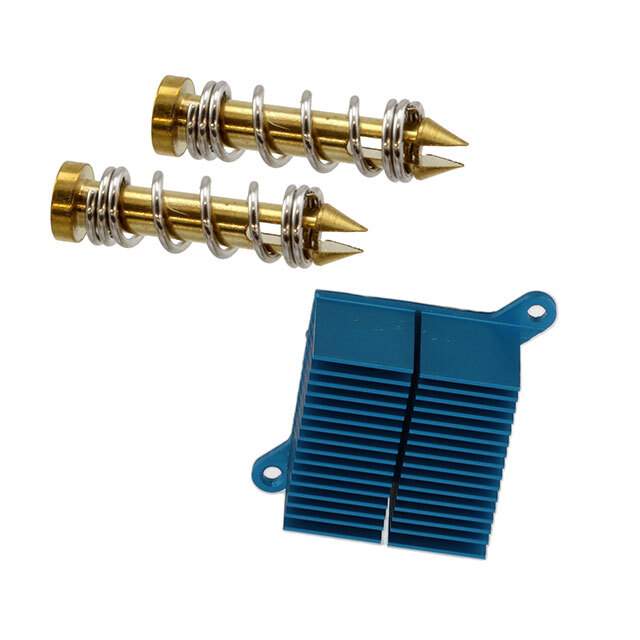

ATS-02E-78-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-02E-78-C1-R0

Part No ATS-02E-78-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 25X25X35MM R-TAB
Datasheet
ATS-02E-78-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 0.984" (25.00mm)
Width 0.984" (25.00mm)
Height Off Base (Height of Fin) 1.378" (35.00mm)
Thermal Resistance @ Forced Air Flow 7.64°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 123904-ATS-02E-78-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-02E-78-C1-R0 CAD Model

Description

ATS-02E-78-C1-R0

The ATS-02E-78-C1-R0 is designed for applications requiring precise electronic synchronization and control. It exudes reliability and precision, tailored for complex projects.

  • Communication Equipment
  • Data Processing Systems
  • Embedded Systems
  • Consumer Electronics

Features and Benefits:

  • Precision Control: Offers exceptional synchronization capabilities.
  • Robust Construction: Built to withstand demanding environments.
  • Versatile Interface: Easily integrates with various systems.

Engineered for sustained performance, the ATS-02E-78-C1-R0 is perfect for engineers looking to enhance their equipment's efficiency and reliability.
