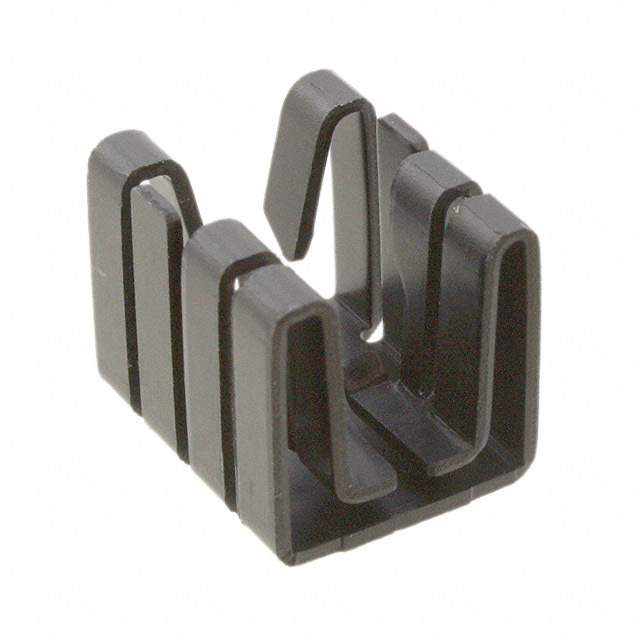

V8508G Real Image
Same model may have multiple batches, images only for reference.

V8508G

Part No V8508G
Manufacturer Assmann WSW Components
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 15X12.8MM / Heat Sink Passive Horizontal Aluminum 5052 Black Anodized
Datasheet
V8508G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Assmann WSW Components
Type Board Level
Package Cooled TO-220
Attachment Method Press Fit
Shape Rectangular, Fins
Length 0.591" (15.01mm)
Width 0.504" (12.80mm)
Height Off Base (Height of Fin) 0.500" (12.70mm)
Power Dissipation @ Temperature Rise 3W @ 60°C
Thermal Resistance @ Forced Air Flow 14.0°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Win Source Part Number 799000-V8508G
Popularity Medium
Supply and Demand Status Limited
Family Name V8508G
Introduction Date March 09, 2010
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian V8508G CAD Model

Description

This V8508G board level heatsink is made of aluminum and features fins for optimal cooling.

  • Length: 0.591 inches (15.01mm)
  • Width: 0.504 inches (12.80mm)
  • Height Off Base (Height of Fin): 0.500 inches (12.70mm)
  • Power Dissipation: 3W @ 60°C
  • Thermal Resistance: 14.0°C/W @ 200 LFM
  • Finish: Black Anodized
  • Suitable For: TO-220 packages
  • ECCN: EAR99
  • Country of Origin: Taiwan
