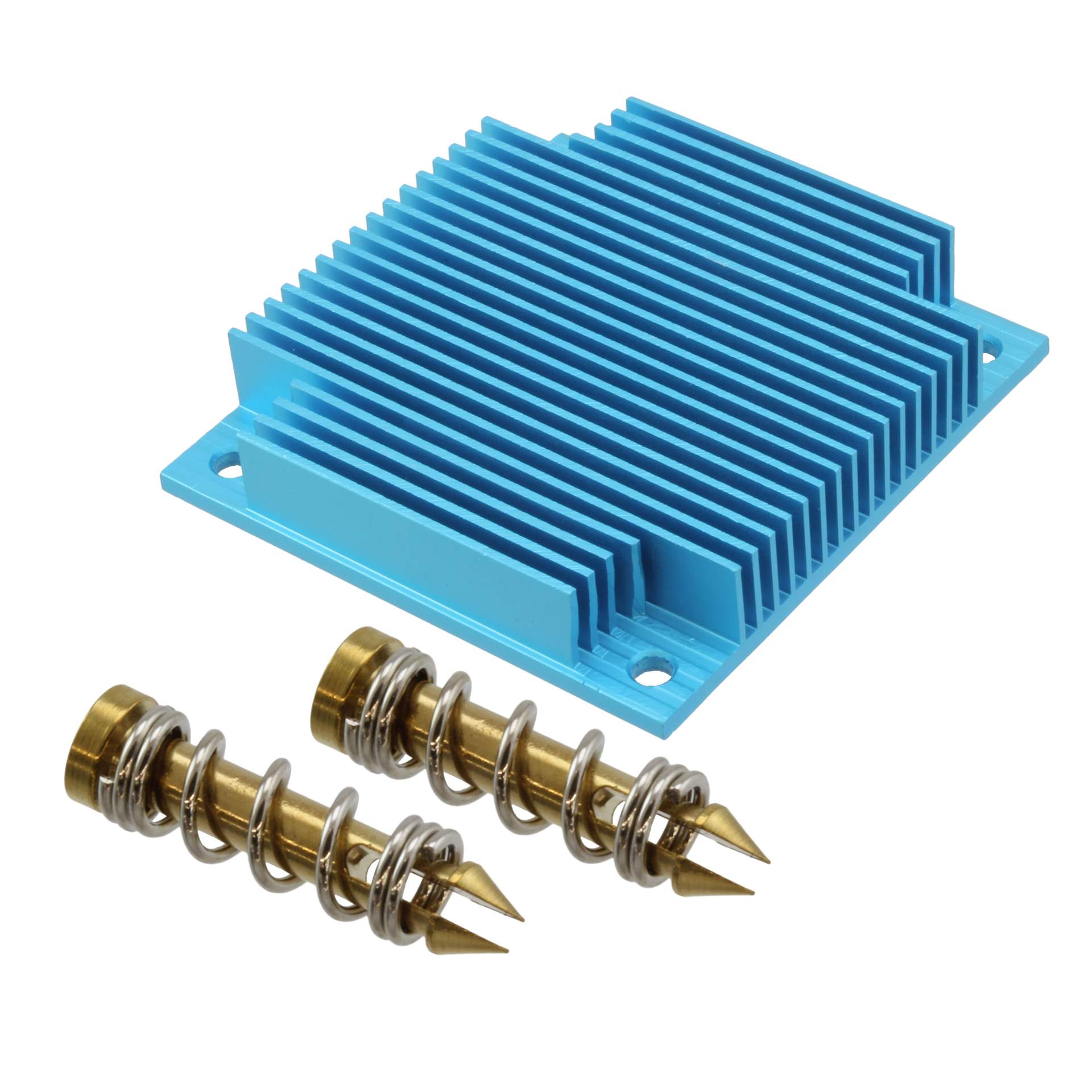

ATS-15D-40-C1-R0

Part No ATS-15D-40-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 57.9X60.96X11.43MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Rectangular, Fins
Length 2.280" (57.90mm)
Width 2.400" (60.96mm)
Height Off Base (Height of Fin) 0.450" (11.43mm)
Thermal Resistance @ Forced Air Flow 14.55°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 136750-ATS-15D-40-C1-R0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ATS-15D-40-C1-R0 CAD Model

Description

Product Overview

The ATS-15D-40-C1-R0 thermoelectric cooler stands out for its reliability and efficiency, designed to be integrated into various cooling systems with ease.

Features and Benefits

  • High-performance cooling with minimal footprint.
  • Efficient thermal management for diverse applications.
  • Sturdy and reliable for extended use.
  • Minimal maintenance requirements.

Applications and Projects

  • Servers and data storage cooling
  • Automotive electronics
  • Consumer electronics
  • Renewable energy systems

Additional Details

The ATS-15D-40-C1-R0 is particularly suited for environments where efficient space utilization and performance are critical, providing a perfect balance of power and practicality.
