Same model may have multiple batches, images only for reference.

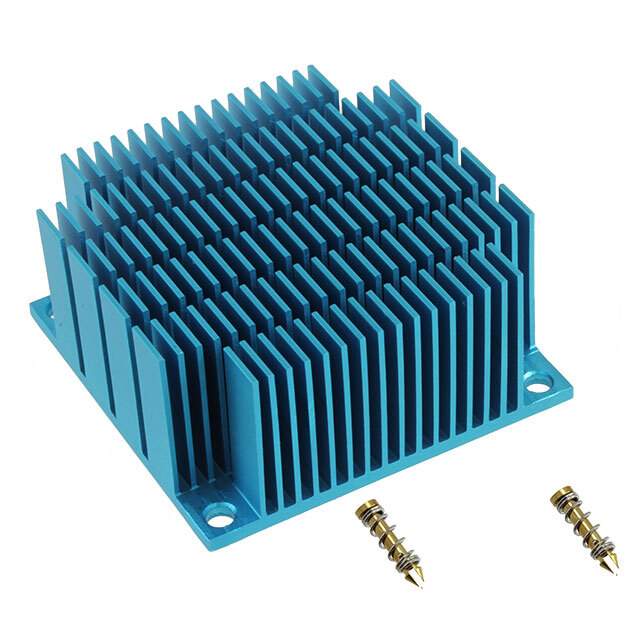

ATS-16F-20-C3-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-16F-20-C3-R0

Part No ATS-16F-20-C3-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 54X54X25MM XCUT T412
Datasheet
ATS-16F-20-C3-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Series pushPIN
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 2.126" (54.01mm)
Width 2.126" (54.00mm)
Height Off Base (Height of Fin) 0.984" (25.00mm)
Thermal Resistance @ Forced Air Flow 7.21°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 760563-ATS-16F-20-C3-R0
Popularity Medium
Supply and Demand Status Limited
Family Name ATS
Introduction Date December 12, 2013
ECCN EAR99
Country of Origin China, United States of America
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ATS-16F-20-C3-R0 CAD Model

Description

The ATS-16F-20-C3-R0 is an electronic component manufactured by Advanced Thermal Solutions Inc.

  • Applications: Fans and Thermal Management
  • Series: pushPIN
  • Mounting: Top Mount
  • Material: Aluminum
  • Fins Shape: Square
  • Thermal Resistance: 7.21°C/W @ 100 LFM
