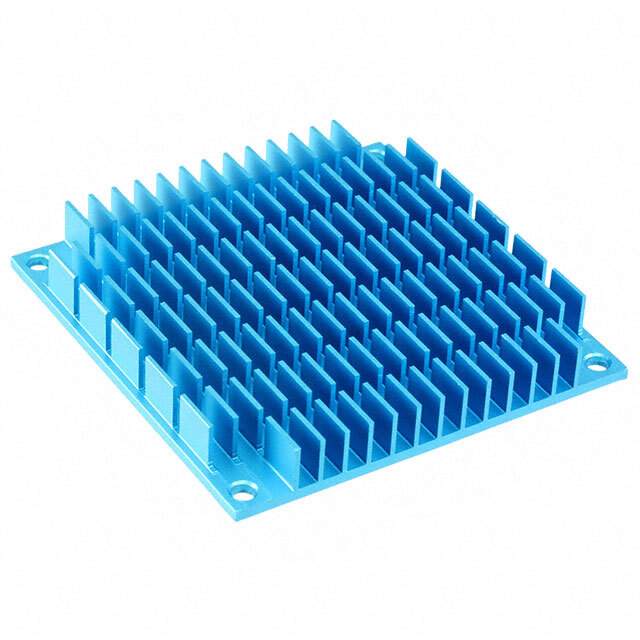

ATS-CPX070070010-133-C2-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-CPX070070010-133-C2-R0

Part No ATS-CPX070070010-133-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 70X70X10MM XCUT CP
Datasheet
ATS-CPX070070010-133-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 2.756" (70.00mm)
Width 2.756" (70.00mm)
Height Off Base (Height of Fin) 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 7.42°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 1020424-ATS-CPX070070010-133-C2-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-CPX070070010-133-C2-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. top mount heatsink is an excellent choice for cooling various electronic components.

  • Length: 2.756 inches (70.00mm)
  • Width: 2.756 inches (70.00mm)
  • Suitable Packages: BGA, LGA, CPU, ASIC, etc.
  • Material: Aluminum
  • Finish: Blue Anodized
  • Shape: Square with Fins
  • Height off Base: 0.394 inches (10.00mm)
  • Thermal Resistance: 7.42°C/W @ 100 LFM
  • Attachment Method: Push pin
  • Market Status: Active
