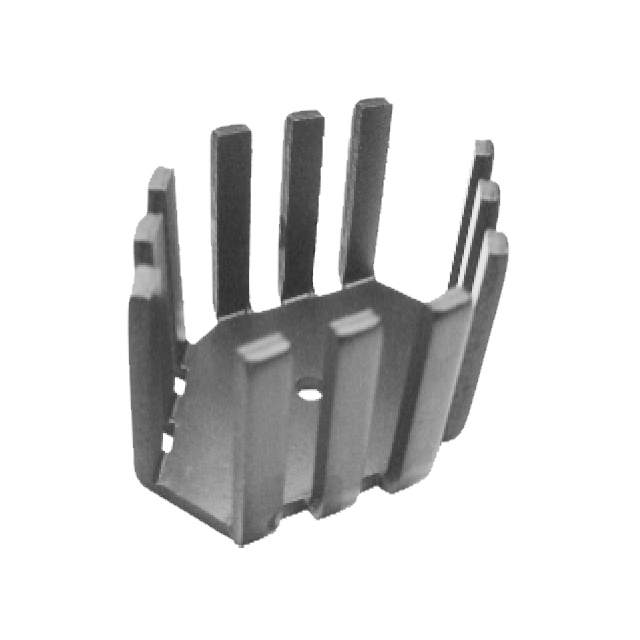

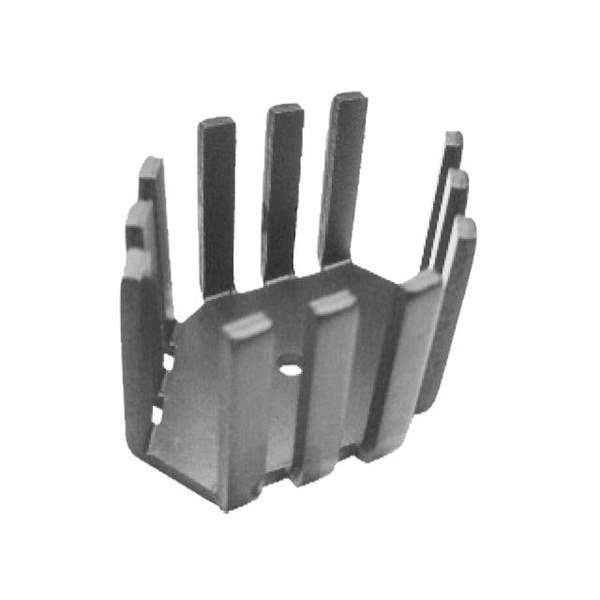

ATS-PCB1041 Real Image
Same model may have multiple batches, images only for reference.

ATS-PCB1041

Part No ATS-PCB1041
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220
Datasheet
ATS-PCB1041 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Type Board Level
Package Cooled TO-220
Attachment Method Bolt On
Shape Rectangular, Fins
Length 1.644" (41.76mm)
Width 1.290" (32.77mm)
Height Off Base (Height of Fin) 1.000" (25.40mm)
Thermal Resistance @ Forced Air Flow 3.8°C/W @ 200 LFM
Thermal Resistance @ Natural 11°C/W
Material Aluminum
Material Finish Black Anodized
Win Source Part Number 793541-ATS-PCB1041
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ATS-PCB1041 CAD Model

Description

The ATS-PCB1041 heat sink is a board level type with a rectangular and fins shape.

  • Package Cooled: TO-220
  • Attachment Method: Bolt on
  • Length: 1.644 inches
  • Width: 1.290 inches
  • Height Off Base (Fin Height): 1.000 inches
  • Material: Aluminum, Black Anodized
  • Thermal Resistance @ Forced Air Flow: 3.8°C/W @ 200 LFM
  • Thermal Resistance @ Natural: 11°C/W
