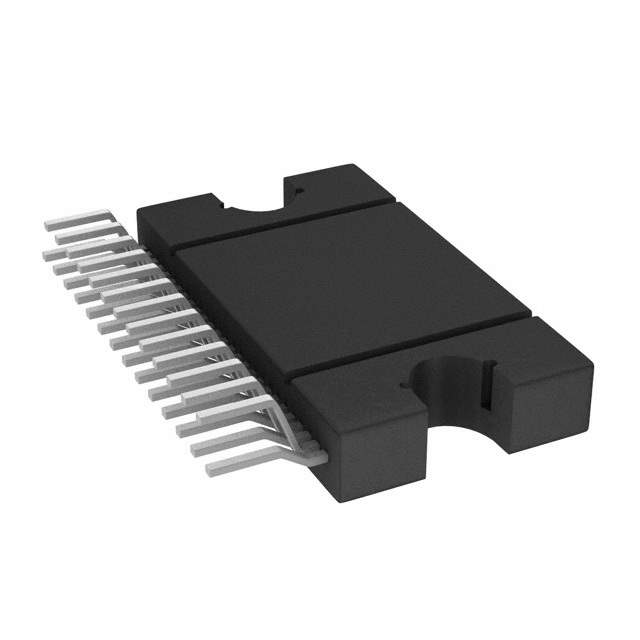

Introducing the TDF8541J/N2 Audio Amplifier by NXP

The TDF8541J/N2 is a state-of-the-art audio amplifier produced by NXP Semiconductors, a leader in automotive technology. This high-performance product is designed to deliver superior audio quality with high efficiency, making it an ideal choice for automotive audio systems and other applications where sound clarity and power efficiency are paramount.

At the heart of the TDF8541J/N2 lies a class-D amplifier capable of driving a wide range of speaker loads. It supports a power supply range from 6V to 18V, enabling it to perform consistently across various operating conditions. With an impressive output power capability, this amplifier can deliver up to 4 x 26W into 4 ohms at 14.4V supply voltage, ensuring loud and clear sound reproduction without distortion.

Key Features

• High-Efficiency Class-D Operation: The TDF8541J/N2's class-D architecture provides high power efficiency, reducing heat dissipation and extending the life of the product.
• Flexible Load Capability: It can drive 2 ohm loads, allowing for more powerful speakers and configurations in the audio system.
• I2C-Bus Control: Equipped with an I2C-bus interface, the amplifier offers extensive control options, including diagnostics, volume control, and selectable gain settings.
• Advanced Protection Features: The amplifier comes with a suite of protection features, such as short-circuit protection, thermal protection, and a loss-of-ground and open-load detection in the output stage.
• Low Quiescent Current: Designed for minimal power consumption when not actively driving speakers, it helps to conserve battery life in automotive applications.

Applications

The TDF8541J/N2's robust design and high-quality audio output make it suitable for a variety of applications, including:

• Car audio systems
• Navigation systems with voice prompts
• Audio systems for electric and hybrid vehicles

With its combination of power, performance, and protection, the TDF8541J/N2 from NXP is an excellent choice for any audio application demanding high fidelity and reliability. Its compact size and high integration level enable designers to create audio systems with a small footprint, without compromising on sound quality.
