Same model may have multiple batches, images only for reference.

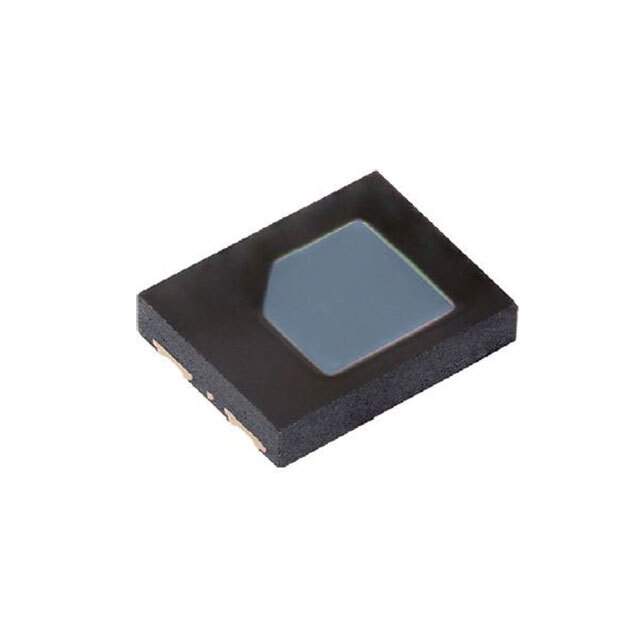

VEMD5510C Real Image
Same model may have multiple batches, images only for reference.

VEMD5510C

Part No VEMD5510C
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 440 TO 700 NM / Photodiode 550nm 70ns 130° 4-SMD, No Lead Exposed Pad
Datasheet
VEMD5510C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Wavelength 550nm
Spectral Range 440nm ~ 700nm
Diode Type PIN
Response Time 70ns
Current - Dark (Typ) 200pA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead Exposed Pad
Base Product Number VEMD5510
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Other Names VEMD5510CTR,VEMD5510CCT,VEMD5510CDKR
Standard Package 1,000
Win Source Part Number 1005585-VEMD5510C
Ultra Librarian 3D Model Ultra Librarian VEMD5510C CAD Model

Description

The VEMD5510C is an optical sensor photodiode manufactured by Vishay Semiconductor Opto Division.

  • Win Source Part Number: 1005585-VEMD5510C
  • Category: Sensors, Transducers
  • Package: tape and reel
  • Response Time: 70ns
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Diode Type: PIN
  • Viewing Angle: 130°
  • Wavelength: 550nm
  • Spectral Range: 440nm ~ 700nm
  • Dark Current: 200pA (typ)
  • Active Area: 7.5mm²
  • Package/Case: 4-SMD, No Lead Exposed Pad
  • Operating Temperature: -40°C ~ 100°C
  • MSL Level: 4 (72 Hours)
  • HTSUS: 8541.49.1050
