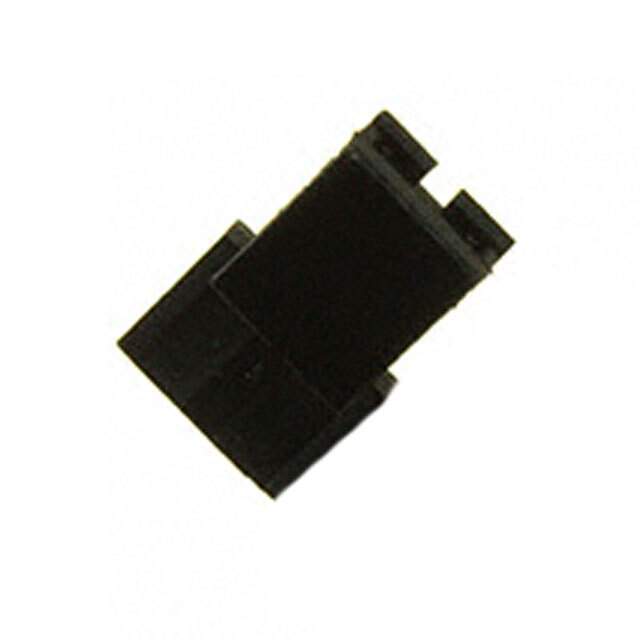

2-382811-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Shunts, Jumpers
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.250" (6.35mm)
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Color Black
Material Flammability Rating UL94 V-0
Housing Material Polyester, Glass Filled
Base Product Number 382811
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -2-382811-1-SI,A31697,23828111
Standard Package 1,500
Win Source Part Number 1332710-2-382811-1
Ultra Librarian 3D Model Ultra Librarian 2-382811-1 CAD Model

Description

The TE Connectivity AMP Connectors shunt jumper is a high-quality and reliable component used in a variety of electronic applications.

  • Pitch: 0.100 inches
  • Top Style: Open
  • Color: Black
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0 micro inches
  • Contact Gender: Female Sockets
  • Housing Material: Polyester, Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 1,500
  • Height: 0.250 inches
  • ECCN: EAR99
  • REACH Status: Unaffected
  • RoHS Compliant: Yes
  • HTSUS: 8536.69.8000
