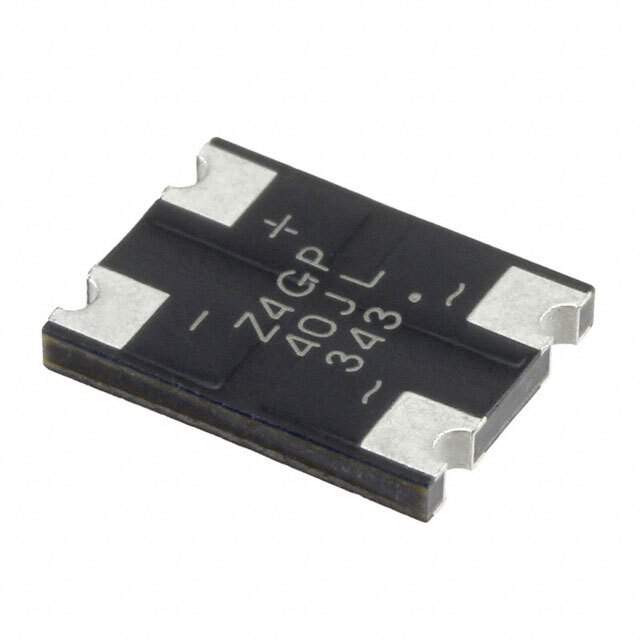

Z4DGP406L-HF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 9 Weeks
Features Bridge Rectifier Single Phase Standard 600 V Surface Mount Z4-D
Manufacturer Comchip Technology
Package Reel - TR
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Surface Mount
Package Z4-D
Case / Package Z4-D
Family Name Z4DGP406
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1502-2, 641-1502-1, Q11360616J, 641-1502-6
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904194-Z4DGP406L-HF
Ultra Librarian 3D Model Ultra Librarian Z4DGP406L-HF CAD Model

Description

The Comchip Technology Z4DGP406L-HF is a bridge rectifier commonly used in electronic circuits.

  • Phase: single-phase standard
  • Maximum Voltage: 600V
  • Package: surface mount
  • Manufacturer: Comchip Technology
  • Family: Z4DGP406
  • Supplied in: reel package
  • Supply and Demand: in balance
  • Popularity: high
  • Replacement: suitable replacement for other bridge rectifiers with similar specifications
