Same model may have multiple batches, images only for reference.

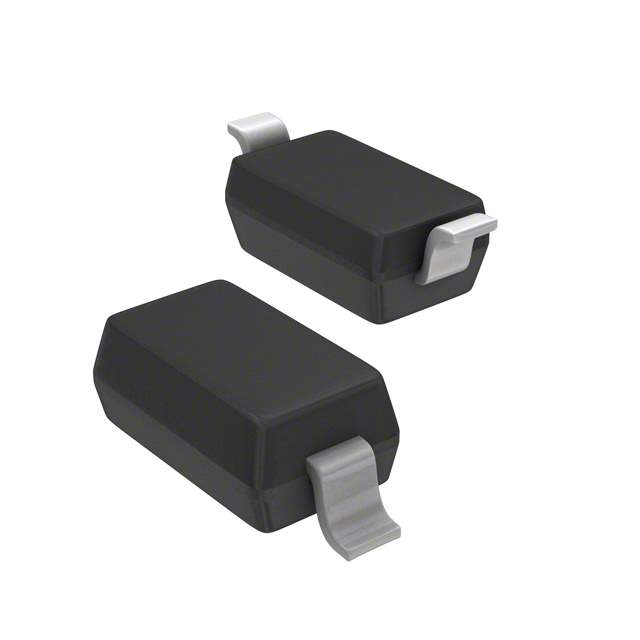

MP4690GSD-LF-P Real Image
Same model may have multiple batches, images only for reference.

MP4690GSD-LF-P

Part No MP4690GSD-LF-P
Manufacturer Monolithic Power Systems Inc.
Catalog Lighting Protection
Description LIGHT PROTECT LED SHUNT 7.5V SMD / Lighting Protection LED Shunt 7.5V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Lighting Protection
Mfr Monolithic Power Systems Inc.
Package Tape & Reel (TR)
Voltage - Clamping 7 V
Voltage 7.5V
Technology LED Shunt
Number of Circuits 1
Applications LED Protection
Mounting SMD (SMT)
Package / Case SOD-123
Supplier Device Package SOD-123
Base Product Number MP4690
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 500
Win Source Part Number 1155325-MP4690GSD-LF-P
Ultra Librarian 3D Model Ultra Librarian MP4690GSD-LF-P CAD Model

Description

The Monolithic Power Systems Inc. MP4690GSD-LF-P is a circuit protection product that is ideal for LED protection applications.

  • Packaging: Tape and reel
  • Standard Package: 500
  • Mounting: Surface-mount device (SMD)
  • Technology: LED shunt
  • Input Voltage: 7.5V
  • Clamping Voltage: 7V
  • Package: SOD-123
  • Supplier Device Package: SOD-123
  • RoHS Compliant: Yes
  • Temperature Range: -40 to 125 degrees Celsius
