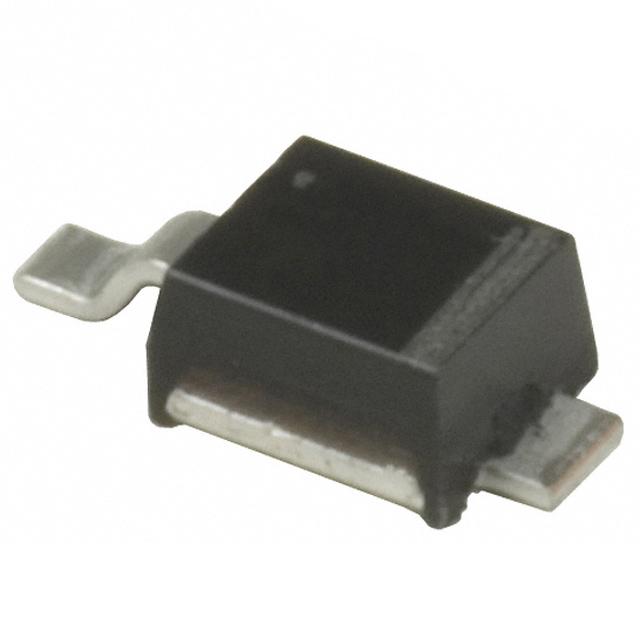

PLED6M Littelfuse Inc.
Same model may have multiple batches, images only for reference.

PLED6M

Part No PLED6M
Manufacturer Littelfuse Inc.
Catalog Lighting Protection
Description LIGHT PROTECT LED SHUNT 5.5V SMD / Lighting Protection LED Shunt 5.5V Surface Mount
Datasheet
PLED6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Lighting Protection
Mfr Littelfuse Inc.
Series PLED®
Package Tape & Reel
Product Status Discontinued
Voltage 5.5V
Technology LED Shunt
Number of Circuits 1
Applications LED Protection
Mounting Type Surface Mount
Package / Case DO-216AA
Supplier Device Package Powermite
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 505854-PLED6M
Ultra Librarian 3D Model Ultra Librarian PLED6M CAD Model

Description

The Littelfuse Inc. 505854-PLED6M is a surface mount LED shunt from the PLED® series, designed for LED protection.

  • Packaging: Tape and reel
  • Voltage Rating: 5.5V
  • Suitable for: Applications where protection against voltage transients is required.
  • Standard Package Quantity: 3,000 pieces
  • Technology: Specifically designed for effective protection of LEDs.
  • Package: DO-216AA, also known as Powermite.
  • Status: Discontinued but was widely used for its reliable LED protection capabilities.
