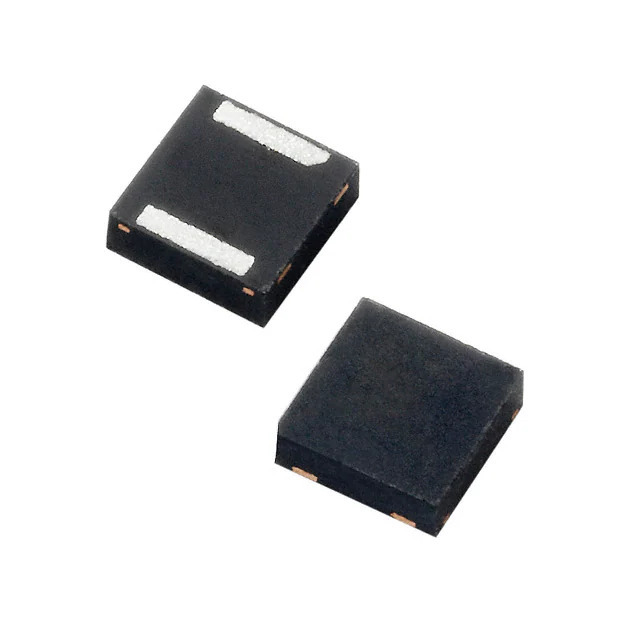

Same model may have multiple batches, images only for reference.
PLED18Q12 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

PLED18Q12

Part No PLED18Q12
Manufacturer Littelfuse Inc.
Catalog Lighting Protection
Description LIGHT PROTECT LED SHUNT 18V SMD / Lighting Protection LED Shunt 18V Surface Mount
Datasheet
PLED18Q12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Lighting Protection
Mfr Littelfuse Inc.
Series PLED®
Package Tape & Reel
Product Status Active
Voltage - Clamping 33 V
Voltage 18V
Technology LED Shunt
Number of Circuits 1
Applications LED Protection
Mounting Type Surface Mount
Package / Case 2-TDFN
Supplier Device Package 2-QFN (3x3)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1361602-PLED18Q12
Ultra Librarian 3D Model Ultra Librarian PLED18Q12 CAD Model

Description

The PLED18Q12 is a circuit protection device manufactured by Littelfuse Inc.

  • Series: PLED
  • Application: LED Protection
  • Voltage Clamping: 33V
  • Voltage Rating: 18V
  • Mounting Type: Surface Mount
  • Package / Case: 2-TDFN
