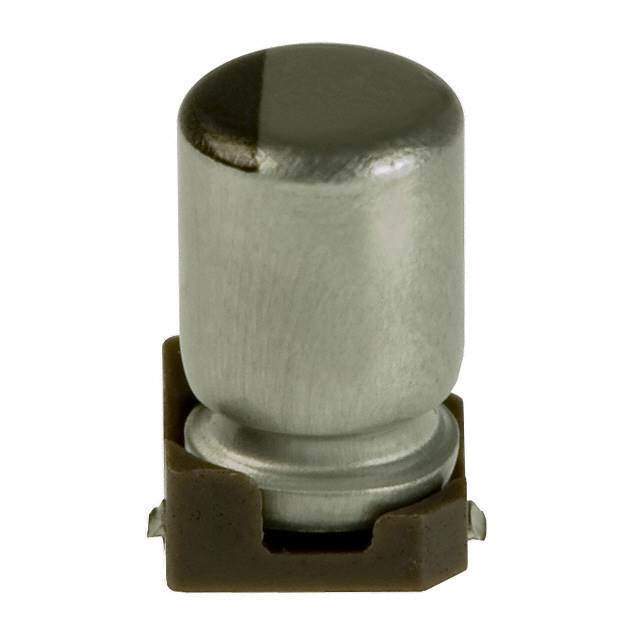

UWX1C100MCL2GB Real Image
Same model may have multiple batches, images only for reference.

UWX1C100MCL2GB

Part No UWX1C100MCL2GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Product Status Obsolete
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 18 mA @ 120 Hz
Ripple Current @ High Frequency 27 mA @ 10 kHz
Size / Dimension 0.118" Dia (3.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.130" L x 0.130" W (3.30mm x 3.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-2099-6,493-2099-1,493-2099-2
Standard Package 2,000
Win Source Part Number 1329550-UWX1C100MCL2GB
Ultra Librarian 3D Model Ultra Librarian UWX1C100MCL2GB CAD Model

Description

The Nichicon UWX1C100MCL2GB is a radial, can - SMD aluminum electrolytic capacitor that is designed for general purpose use.

  • Capacitance: 10 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Ripple Current (120 Hz): 18 mA @ 120 Hz
  • Ripple Current (10 kHz): 27 mA @ 10 kHz
  • Diameter: 0.118" (3.00mm)
  • Height: 0.213" (5.40mm)
  • Lifetime: 2000 Hrs @ 85°C
  • ROHS3 Compliant: Yes
