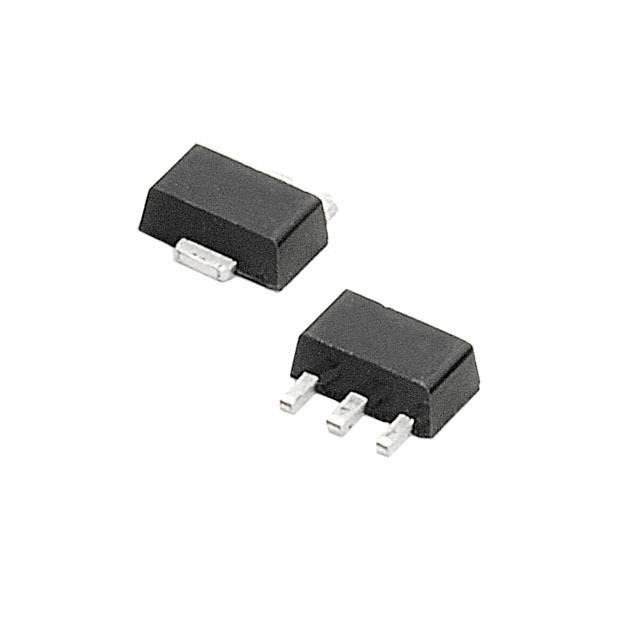

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage 3.5V
Voltage - Clamping 5.2V
Technology LED Shunt
Number of Circuits 1
Applications LED Protection
Mounting SMD (SMT)
Case / Package SOT-89-3
Win Source Part Number 1089384-PLED5HT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, LED Lighting, Power Management
Ultra Librarian 3D Model Ultra Librarian PLED5HT CAD Model

Description

The PLED5HT from Littelfuse Inc. is a SOT-89-3 packaged LED shunt technology circuit protection component.

  • Voltage Clamping: 5.2V
  • Application: LED protection
  • Mounting Style: Surface mount
  • Voltage: 3.5V
  • Part Usage: Common-used
  • Applications: Safety, LED lighting, and power management
