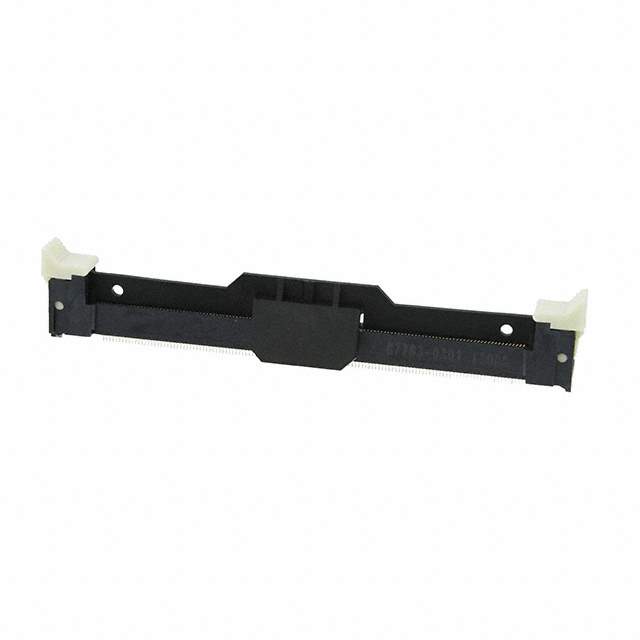

87783-0301 Real Image
Same model may have multiple batches, images only for reference.

87783-0301

Part No 87783-0301
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description Conn Mini DIMM Socket SKT 244 POS 0.6mm Solder RA SMD MiniDIMM Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin US
Current Rating 1 A
Depth 15.4 mm
Housing Color Black
Insulation Material Polymer
Length 106.2 mm
Maximum Operating Temperature 85 °C
Memory Type DDR3 SDRAM
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 200
Number of Contacts 244
Number of Positions 244
Number of Rows 2
Orientation Right Angle
Pitch 600 µm
Plating Tin
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 30 V
Win Source Part Number 1027110-87783-0301
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87783-0301 CAD Model

Description

The 87783-0301 is a memory connector accessory manufactured by Molex, LLC.

  • Category: memory connector accessory
  • Manufacturer: Molex, LLC
  • Positions: 244
  • Rows: 2
  • Pitch: 600 µm
  • Termination: solder
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Contacts: 244
  • Length: 106.2mm
  • Circuits: 200
  • Orientation: right angle
  • Contact Plating: gold
  • Housing Color: black
  • Insulation Material: polymer
  • Plating: tin
  • Alternative Parts: 87782-6003, 87782-3005, 10079248-10102LF, 10079248-11103LF, 10079248-15103LF0877830301, 877830301
  • Supply and Demand Status: shortage
  • Maximum Operating Temperature: 85 °C
  • RoHS Compliant: yes
  • Radiation Hardened: no
