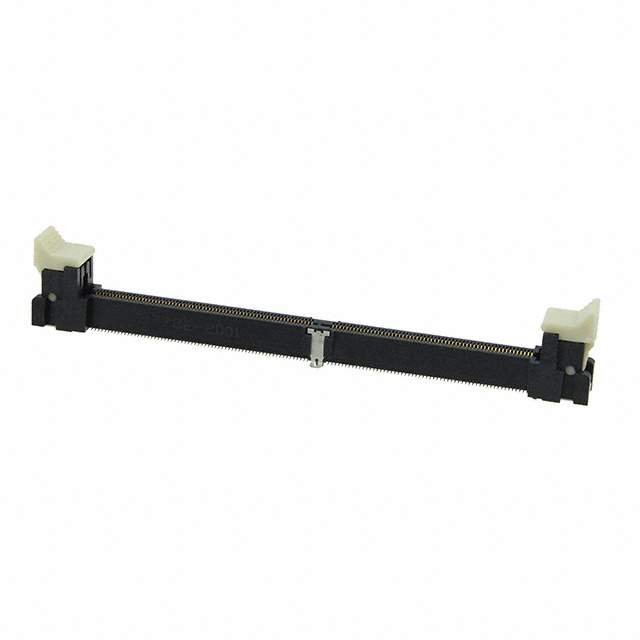

Same model may have multiple batches, images only for reference.

87782-2001

Name: 87782-2001
Brand: Molex, LLC
SKU: 1158485
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	87782-2001
Manufacturer	Molex, LLC
Catalog	Memory Connectors - Accessories
Description	Connector DIMM Socket 244 Position 0.6mm Solder Straight Surface Mount Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Body Material	Liquid Crystal Polymer
Case / Package	Module
Connector Type	Socket
Contact Material	Copper
Contact Plating	Gold
Contact Resistance	30 mΩ
Country of Origin	SG
Current Rating	1.5 A
Depth	7.9 mm
Gender	Female
Glow Wire Compliant	Non-compliant
Height	16.4 mm
Housing Color	Black
Housing Material	Thermoplastic
Insulation Material	Thermoplastic
Insulation Resistance	1 GΩ
Lead Free	Lead Free
Lead Pitch	600 µm
Length	96 mm
Max Current Rating	1 A
Max Operating Temperature	85 °C
Max Voltage Rating (AC)	30 V
Memory Type	DDR, SDRAM
Min Operating Temperature	-55 °C
Mount	Surface Mount
Number of Circuits	244
Number of Contacts	244
Number of Positions	244
Number of Rows	1
Orientation	Vertical
Pitch	600 µm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	SMD/SMT
Voltage Rating	30 V
Voltage Rating (AC)	30 V
Win Source Part Number	1158485-87782-2001
Categories	Memory Connectors - Accessories
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 87782-2001 CAD Model

Description

The Molex, LLC 87782-2001 connector is a socket connector that is ideal for use in memory connectors and accessories.

Positions: 244
Pitch: 600 µm
Rows: 1
Termination: SMD/SMT
Contact Material: Copper
Voltage Rating: 30V
Current Rating: 1.5A
Number of Contacts: 244
Gender: Female
Length: 96mm
Housing Material: Thermoplastic
Number of Circuits: 244
Orientation: Vertical
Contact Plating: Gold
Housing Color: Black
Insulation Material: Thermoplastic
Body Material: Liquid Crystal Polymer
Contact Resistance: 30 mΩ
Memory Type: DDR, SDRAM
Height: 16.4mm
Plating: Tin
Insulation Resistance: 1 GΩ
Country of Origin: SG
Supply and Demand: Limited
