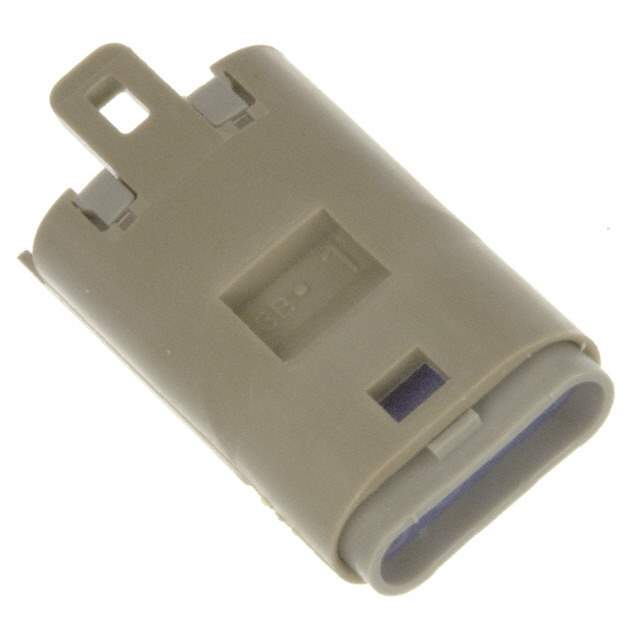

0522660417 Real Image
Same model may have multiple batches, images only for reference.

0522660417

Part No 0522660417
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG HSG 4POS 2.50MM / 4 Rectangular Connectors - Housings Plug Brown 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Tray
Product Status Last Time Buy
Connector Type Plug
Contact Type Male Pin
Number of Positions 4
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Detent Lock
Color Brown
Features Waterproof (Mated, IP67)
Note Contacts Not Included
Base Product Number 052266
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number WM17528,52266-0417,52266-0417-E,052266-0417-E,052266-0417,522660417-E,0522660417-E,522660417
Standard Package 900
Win Source Part Number 1334592-0522660417
Ultra Librarian 3D Model Ultra Librarian 0522660417 CAD Model

Description

Molex 1334592-0522660417 is a 4-position rectangular connector housing.

  • Positions: 4
  • Pitch: 0.098 inches (2.50mm)
  • Color: Brown
  • Connector Type: Plug
  • Contact Type: Male Pin
  • Fastening Type: Detent Lock
  • Contact Termination: Crimp
  • Waterproof: Mated, IP67
  • Contacts Included: No
  • Mounting: Free-Hanging (In-Line)
  • Standard Package: 900
  • RoHS3 Compliant: Yes
  • Current Rating: 1A
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
