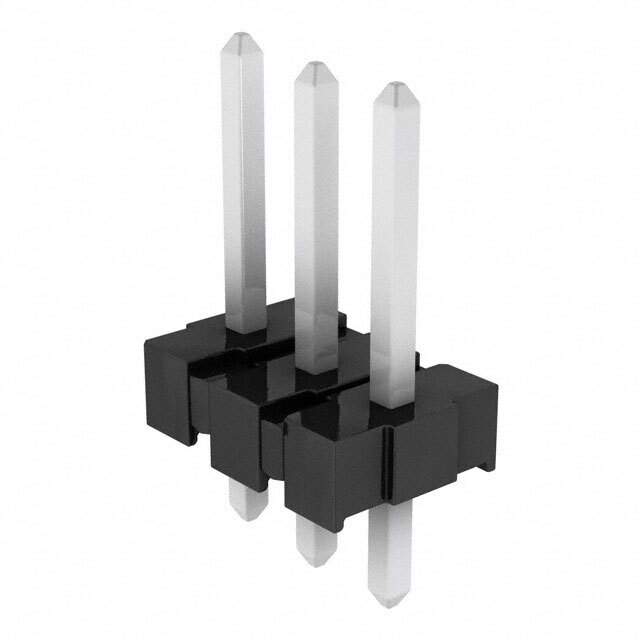

0026481031 Real Image
Same model may have multiple batches, images only for reference.

0026481031

Part No 0026481031
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3.96MM / Connector Header Through Hole 3 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.172" (4.37mm)
Overall Contact Length 0.750" (19.05mm)
Insulation Height 0.128" (3.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 002648
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM50007-03,0026481031-P,26-48-1031-P,26481031-P,WM50007-1031,26481031,0026-48-1031-P,WM50007-1031-ND,WM4401-ND,0026-48-1031,WM4401,26-48-1031
Standard Package 10
Win Source Part Number 1332399-0026481031
Ultra Librarian 3D Model Ultra Librarian 0026481031 CAD Model

Description

The Molex 1332399-0026481031 is a male pin header connector with 3 positions.

  • Positions: 3
  • Connector Type: Breakaway Header
  • Termination: Solder
  • Contact Material: Brass
  • Contact Finish: Tin
  • Contact Finish Thickness: 60.0µin
  • Pitch: 0.156 inches
  • Operating Temperature Range: -55°C to 155°C
  • Packaging Type: Bulk
  • Standard Package: 10
  • Applications: Automotive, General Purpose, Industrial, Medical, Telecommunications
