26-61-4030

Part No 26-61-4030
Manufacturer Molex, LLC
Catalog Rectangular Connectors

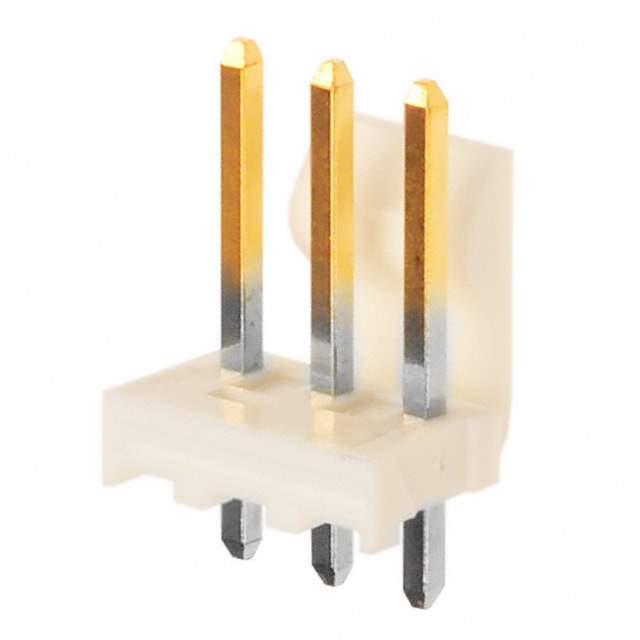

Description CONN HEADER 3POS .156 VERT GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.720" (18.29mm)
Insulation Height 0.446" (11.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20μin (0.51μm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Win Source Part Number 052737-26-61-4030
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 26-61-4030 CAD Model

Description

Product Description for 26-61-4030

The 26-61-4030 is a high-performance capacitor suitable for a broad category of electrical applications. Known for its longevity and robust performance, it stands essential for circuits requiring high-capacity energy storage.

  • Features:
  • High capacitance value for energy storage.
  • Low equivalent series resistance (ESR).
  • Minimal leakage current.
  • Applications:
  • Audio equipment
  • Power electronics
  • Motor drives
  • Energy storage solutions

Benefits: The capacitor supports devices in achieving superior stability and energy efficiency.
