Same model may have multiple batches, images only for reference.

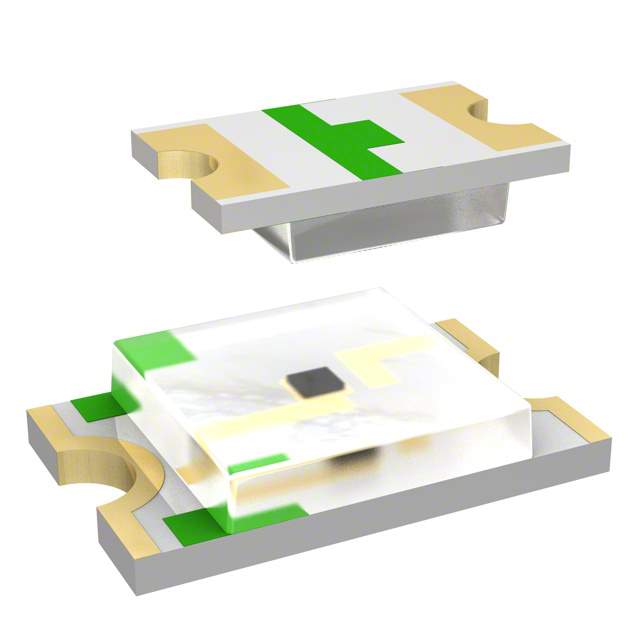

APHCM2012SYCK-F01 Real Image
Same model may have multiple batches, images only for reference.

APHCM2012SYCK-F01

Part No APHCM2012SYCK-F01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description 2.0x1.25mm SMD CHIP LED LAMP | LED YELLOW CLEAR CHIP SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 150mcd
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) 2V
Current - Test 20mA
Viewing Angle 110°
Mounting Style SMD
Wavelength - Dominant 590nm
Wavelength - Peak 590nm
Manufacturer Package 0805
Supplier Device Package Chip LED
Parts Dimension 2.00mm L x 1.25mm W
Height (Maximum) 0.40mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1146331-APHCM2012SYCK-F01
Manufacturer Homepage www.us.kingbright.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian APHCM2012SYCK-F01 CAD Model

Description

The chip LED with a rectangular flat top lens style and a clear lens transparency is manufactured by Kingbright and is a perfect optoelectronic component for electronic applications.

  • Millicandela Rating: 150mcd
  • Viewing Angle: 110 degrees
  • Current-Test: 20mA
  • Forward Voltage (Vf): 2V
  • Wavelength: 590nm
  • Peak Wavelength: 590nm
  • Packing: Reel
  • Mounting Style: Surface-mount device (SMD)
  • Applications: Display panels, light pipes, and backlighting
  • Dimensions: 2.00mm L x 1.25mm W
  • Height: 0.40mm (maximum)
  • Package: 0805 package
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 3 (168 hours)
