ZHL-2-8-S+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZHL-2-8-S+

Part No ZHL-2-8-S+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description GAIN BLOCK, 10 - 1000 MHZ, 50
Datasheet
ZHL-2-8-S+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

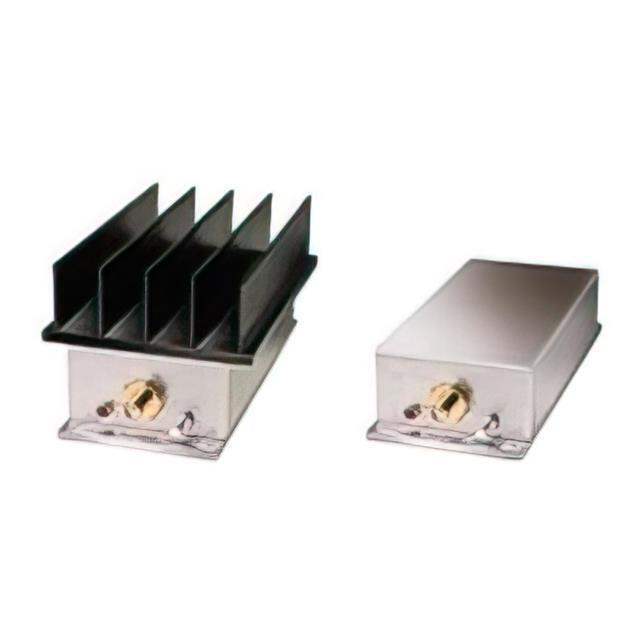

Mini-Circuits’ ZHL-2-8+ is a medium-power connectorized amplifier providing 34 dB gain and +30 dBm P3dB across the 10 to 1000 MHz frequency range. Excellent gain flatness across its entire frequency range (±0.8 dB) makes it ideal for systems where consistent performance across frequency is required. The amplifier operates on a +24 V DC supply and comes housed in compact aluminum alloy case (4.75 x 2.00 x 2.12”) with SMA connectors and an optional heat sink for efficient cooling.
