Microchip Technology USB2514B-AEZG-TR USB 2.0 Hi-Speed Hub Controller

The USB2514B-AEZG-TR is a versatile and high-performance USB 2.0 Hi-Speed hub controller from Microchip Technology, designed for integration into a wide range of applications. This hub controller is an ideal solution for managing multiple USB devices, providing an efficient and reliable means of expanding USB capabilities.

This compact chip integrates a 4-port hub with a USB 2.0 compliant interface, supporting high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data rates, ensuring compatibility with various USB devices. Its MultiTRAK™ technology is designed to deliver high-bandwidth performance by enabling simultaneous operation of multiple devices without compromising data throughput.

The USB2514B-AEZG-TR features an internal transceiver that is fully compliant with the USB 2.0 specification and also backward compatible with USB 1.1, ensuring seamless integration with legacy devices. The chip's built-in PHYs (Physical Layer Transceivers) provide robust signal quality, which is crucial for maintaining stable and reliable connections over USB.

Equipped with an on-chip microcontroller, the USB2514B-AEZG-TR offers configurable vendor ID, product ID, device ID, and other USB descriptors, allowing OEMs to customize their designs. The device also supports both individual and ganged power switching and over-current detection, providing additional flexibility and protection for connected devices.

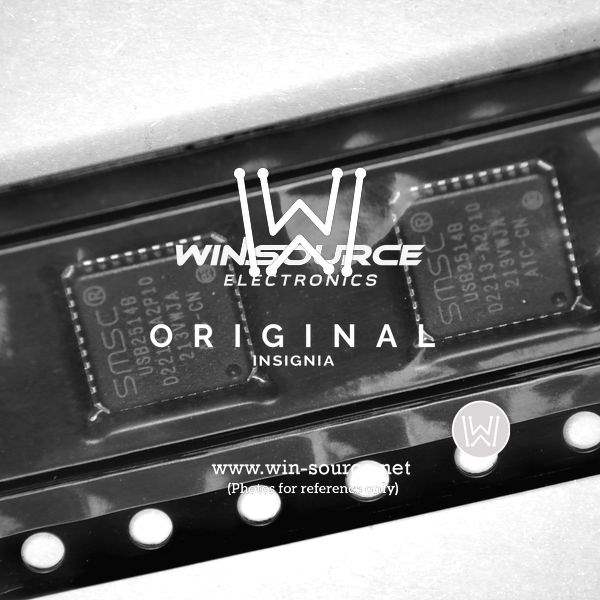

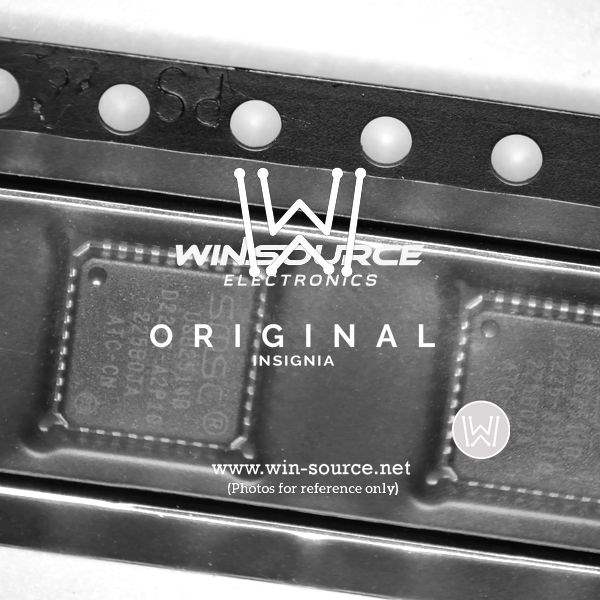

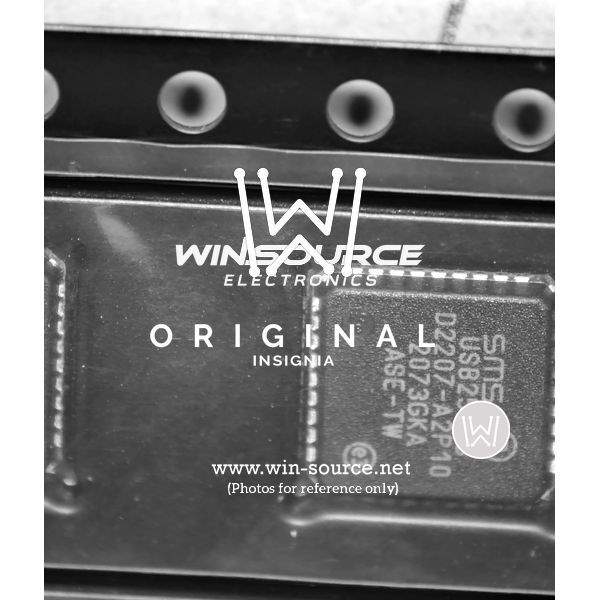

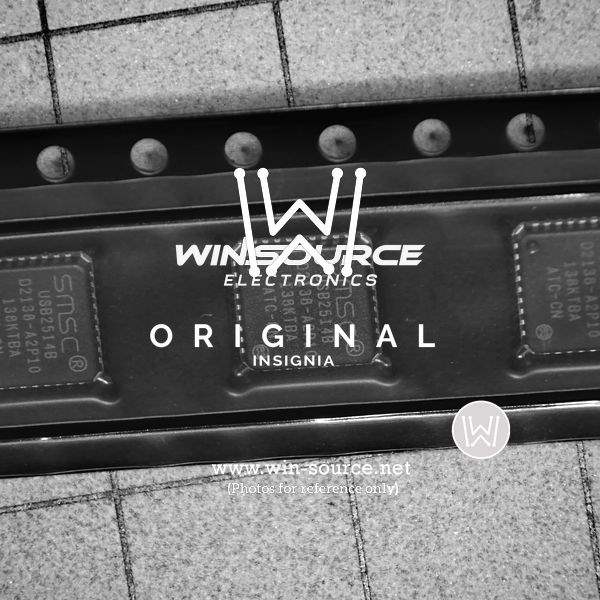

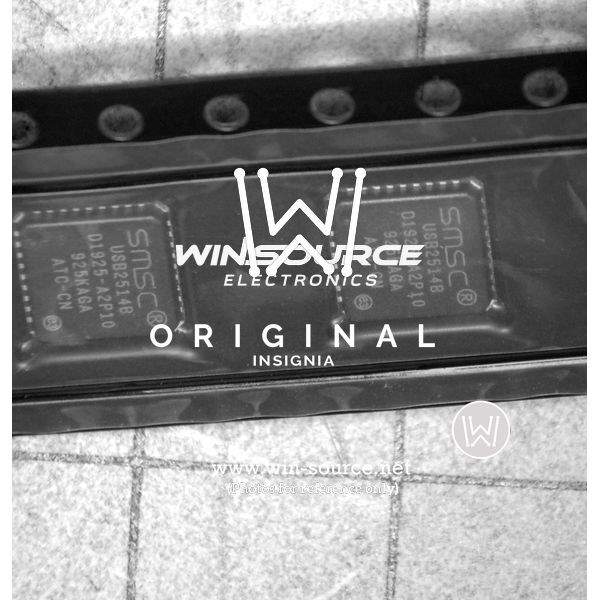

The hub controller is available in a 36-pin QFN (Quad-Flat No-leads) package, making it suitable for space-constrained applications. It operates over an industrial temperature range, making it robust for use in a variety of environments.

For ease of integration, the USB2514B-AEZG-TR is supported by Microchip's comprehensive suite of software tools and drivers, which can help developers accelerate their product development cycles. Whether it's for mobile devices, desktop PCs, consumer electronics, or embedded systems, this USB hub controller is designed to meet the needs of manufacturers looking for a high-quality, scalable USB interface solution.

In summary, the USB2514B-AEZG-TR from Microchip Technology is a feature-rich USB hub controller that offers excellent performance, extensive customizability, and robust operation, making it an outstanding choice for expanding USB connectivity in a multitude of electronic products.
