Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Microchip Technology
Package Tray
RF Family/Standard WiFi
Protocol 802.11b/g
Modulation CCK, DBPSK, DQPSK, DSSS, OFDM
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 12dBm
Sensitivity -83dBm
Serial Interfaces SPI, UART
Antenna Type Antenna Not Included
Memory Size 2MB ROM, 128kB RAM
Voltage - Supply 3.3V
Current - Receiving 40mA
Current - Transmitting 120mA ~ 190mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 49-SMD Module
Firmware Version 1.0.0
Base Product Number RN1723
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8529.90.2100
Standard Package 50
Win Source Part Number 1088718-RN1723-I/RM100
Ultra Librarian 3D Model Ultra Librarian RN1723-I/RM100 CAD Model

Description

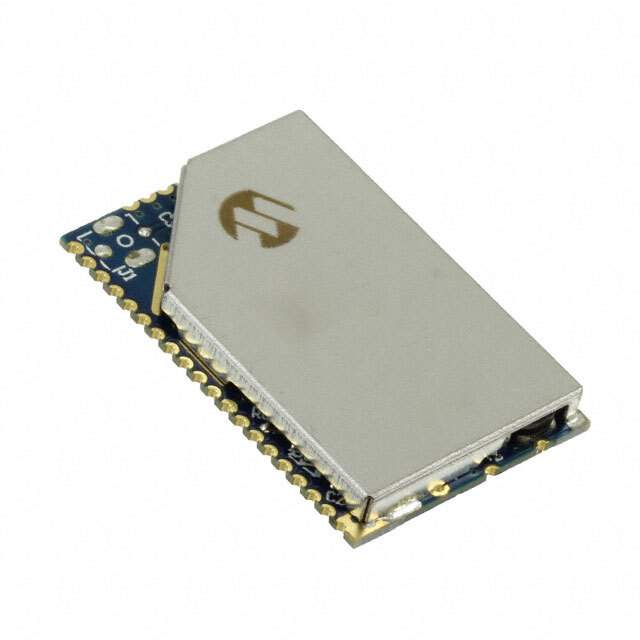

The Microchip Technology RN1723-I/RM100 is a cutting-edge Wi-Fi module that offers a compact, high-performance solution for a wide range of wireless applications. Integrating both hardware and software capabilities, this module is designed to simplify the process of adding Wi-Fi connectivity to your electronic designs.

Key Features

  • Integrated TCP/IP Stack: The RN1723-I/RM100 comes with a full onboard TCP/IP stack that minimizes the load on the host processor, helping to reduce both system complexity and power consumption.
  • Easy Configuration: This module can be configured through simple ASCII commands via a UART interface, which makes it accessible for developers of all skill levels.
  • Flexible Power Options: It supports a wide range of power supply voltages, making it suitable for various applications without the need for additional power conditioning hardware.
  • Wi-Fi Security: With advanced security protocols such as WPA/WPA2 personal and enterprise, the RN1723-I/RM100 ensures secure wireless data communication.
  • Small Footprint: The compact size of the module allows it to be easily integrated into space-constrained designs, providing Wi-Fi connectivity without a significant increase in the size of the end product.

Applications

The versatility of the RN1723-I/RM100 makes it an ideal choice for a variety of applications, including but not limited to:

  • Home Automation Systems
  • Industrial Control Systems
  • Remote Sensor Monitoring
  • Wireless Audio/Video Streaming Devices
  • Healthcare and Medical Devices

Technical Specifications

The RN1723-I/RM100 operates in the ISM 2.4 GHz frequency band and is compliant with 802.11b/g/n standards. It boasts an industrial temperature range of -40°C to +85°C, ensuring reliable performance in extreme conditions. The module also includes multiple I/O options for greater flexibility in interfacing with different peripherals and systems.

Conclusion

With its robust feature set and ease of use, the Microchip Technology RN1723-I/RM100 is an excellent choice for designers and engineers looking to incorporate reliable Wi-Fi functionality into their products. Its combination of power efficiency, compact size, and comprehensive security features make it a versatile solution that can meet the demands of a wide array of wireless applications.
