Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Not For New Designs
Frequency 380MHz to 450MHz
Sensitivity -110dBm
Data Rate (Max) 10 kbps
Modulation or Protocol ASK, OOK
Applications ISM, Garage Door Openers, RKE
Current - Receiving 6mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Features No IF Filter Required
Supply Voltage - Operating 3 V to 3.6 V
Temperature Range - Operating -40°C to 105°C

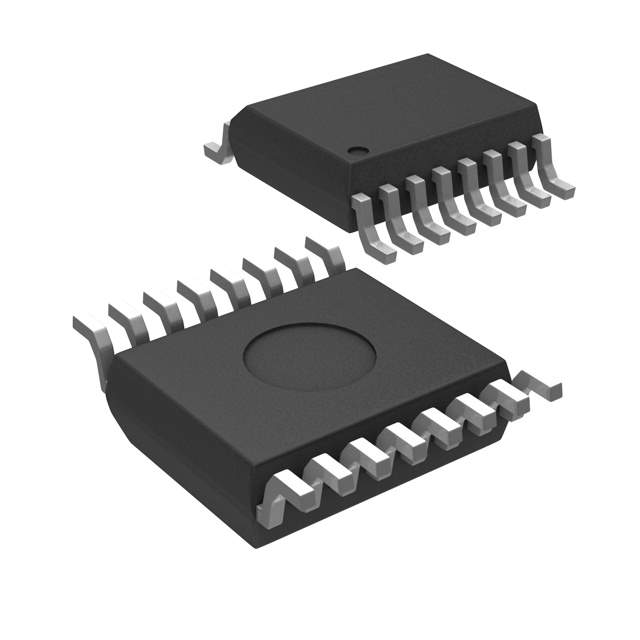

Case / Package 16-QSOP
Win Source Part Number 003581-MICRF211AYQS
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name MICRF211
Introduction Date March 01, 2007
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MICRF211AYQS CAD Model

Description

MICRF211AYQS - Microchip Technology

The MICRF211AYQS from Microchip Technology is a sophisticated ASK (Amplitude Shift Keying) Transmitter IC designed for seamless integration into a wide range of wireless communication systems. This transmitter operates in the 300MHz to 450MHz frequency band, making it ideal for applications such as remote keyless entry (RKE), garage door openers, and wireless alarm systems.

Key Features:

  • Frequency Range: The device is capable of operating in the 300MHz to 450MHz frequency range, providing flexibility for use in various regional communication standards.
  • Modulation: Utilizes ASK modulation technique, which is simple yet reliable for transmitting data over short distances.
  • Output Power: It can deliver up to +10dBm output power, ensuring strong signal transmission and good range performance.
  • Supply Voltage: The MICRF211AYQS functions within a 2.1V to 3.6V supply voltage range, accommodating a variety of power sources and making it suitable for battery-operated devices.
  • Low Power Consumption: Designed with power efficiency in mind, it is an ideal choice for battery-powered applications where longevity is a priority.
  • Package: Available in a compact 16-pin QSOP package, it is designed for space-constrained applications.

Applications:

The versatility of the MICRF211AYQS makes it a prime candidate for a multitude of applications that require reliable wireless communication. Some of the typical applications include:

  • Remote Keyless Entry (RKE) systems for vehicles
  • Garage door openers
  • Wireless alarm and security systems
  • Home automation
  • Industrial control

Microchip Technology's commitment to quality ensures that the MICRF211AYQS transmitter IC meets the needs of developers looking for a reliable and efficient solution for their wireless communication projects. With its robust feature set and flexible operating characteristics, this product is well-suited to a broad array of wireless applications.
