Microchip Technology PIC16LF818T-I/ML Microcontroller

The PIC16LF818T-I/ML is a high-performance, 8-bit microcontroller unit (MCU) from Microchip Technology, tailored for a broad range of applications. This versatile MCU is part of Microchip’s renowned PIC16 series, known for their reliability and ease of use. It is designed to deliver low power consumption and a rich set of integrated features in a compact package, making it an ideal choice for space-constrained and power-sensitive applications.

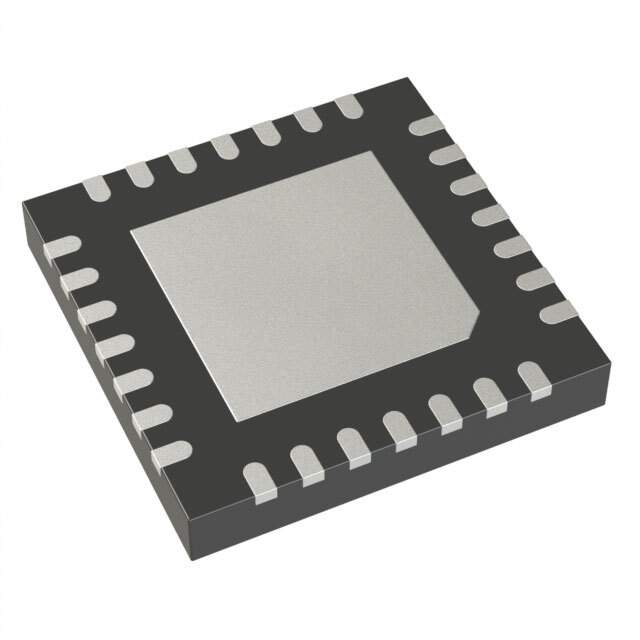

Encased in a 28-pin QFN (quad-flat no-leads) package, the PIC16LF818T-I/ML operates with an enhanced mid-range 8-bit architecture. It boasts a wide operating voltage range from 2.0V to 5.5V, allowing it to fit seamlessly into various circuit designs. This MCU comes equipped with 1.75KB of flash program memory, 68 bytes of data EEPROM, and 128 bytes of RAM, providing ample space for application code and data storage.

The device features a precision internal oscillator, eliminating the need for an external crystal and reducing the overall component count. Its clock speed can reach up to 20 MHz, enabling swift processing and response times. The PIC16LF818T-I/ML also includes an array of peripherals such as:

• 10-bit Analog-to-Digital Converter (ADC) with up to 8 channels, facilitating accurate analog signal measurement.
• Two Capture/Compare/PWM (CCP) modules, which are useful for creating complex timing and control systems.
• A synchronous serial port (SSP) with SPI and I²C capabilities, allowing for easy communication with other microcontrollers or peripherals.
• An Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), supporting serial communication protocols like RS-232, RS-485, and more.

For security and maintenance purposes, the PIC16LF818T-I/ML incorporates Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), Watchdog Timer (WDT), and brown-out reset (BOR). These features help to ensure stable operation under varying conditions.

Programmable via In-Circuit Serial Programming™ (ICSP™), the PIC16LF818T-I/ML allows for in-system programming, making it convenient for developers to update firmware post-deployment. Moreover, the MCU is supported by Microchip's MPLAB® integrated development environment (IDE), which provides a comprehensive suite of development tools to streamline the development process.

Whether you are designing consumer electronics, automotive systems, industrial controls, or Internet of Things (IoT) devices, the PIC16LF818T-I/ML is a robust, versatile, and energy-efficient microcontroller that can meet the demands of your complex projects.
