Microchip Technology's PIC16F1825-I/SL Microcontroller

The PIC16F1825-I/SL is a versatile and powerful microcontroller unit (MCU) from Microchip Technology, renowned for its high performance and low-power operation. This MCU is part of the expansive PIC16F family, which is well-suited for a variety of applications ranging from simple to complex tasks in the consumer, automotive, and industrial markets.

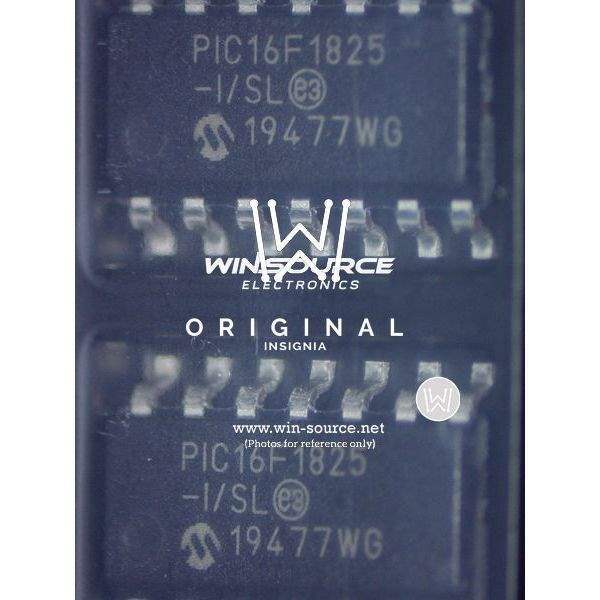

Encased in a sleek 14-pin SOIC package, the PIC16F1825-I/SL boasts an optimized architecture that is designed to execute instructions efficiently, often in a single clock cycle. This results in a product that is not only fast but also has a reduced power consumption, making it an ideal choice for battery-powered or power-sensitive applications.

The MCU features a 14 KB flash memory, which provides ample space for application code, and 1 KB of RAM for data storage. Additionally, it has 256 bytes of EEPROM, which is perfect for non-volatile storage needs. The PIC16F1825-I/SL operates at a wide voltage range of 1.8V to 5.5V, giving designers the flexibility to use it in various power environments.

Among its core features, the PIC16F1825-I/SL includes an 8-bit processor, an internal oscillator, and multiple communication peripherals such as I2C, SPI, and UART, which allow for easy integration into a system and communication with other devices. It also supports up to 12 I/O pins, which can be configured for various input/output functionalities, including analog inputs with its built-in 10-bit Analog-to-Digital Converter (ADC).

For enhanced functionality, the MCU is equipped with various timers, PWM modules, and comparators, which are useful for tasks that require precise timing and control, such as motor control or LED dimming. Its interrupt capability ensures responsive and efficient handling of events, further enhancing its real-time performance.

The PIC16F1825-I/SL is supported by Microchip's comprehensive development tools, including the MPLAB X Integrated Development Environment (IDE) and MPLAB Code Configurator. These tools simplify the development process, from code writing and debugging to programming the device, allowing for a smoother design experience and faster time to market.

Overall, the PIC16F1825-I/SL is a robust and feature-rich microcontroller that provides a perfect balance between power efficiency and performance, making it an excellent choice for engineers and hobbyists looking to develop sophisticated and reliable electronic products.
