Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Reel - TR
Status Active
Purpose PA Management IC
Frequency 2MHz
RF Type CDMA2000, UMTS/WCDMA
Secondary Attributes W/DAC Input and Bypass Switch

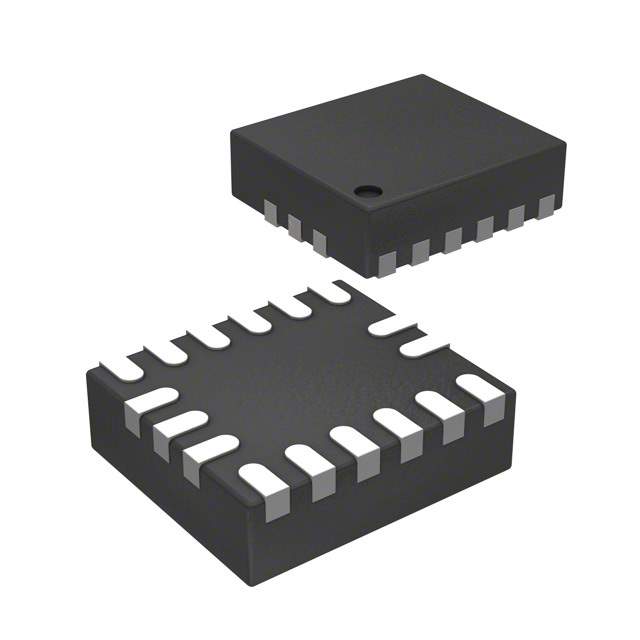

Case / Package 17-MLF (2.5x2.8)
Win Source Part Number 098989-MIC2807-NNYML-TR
Ultra Librarian 3D Model Ultra Librarian MIC2807-NNYML-TR CAD Model

Description

MIC2807-NNYML-TR from Microchip Technology

The MIC2807-NNYML-TR is a high-performance, dual LDO (Low Dropout Regulator) developed by Microchip Technology, an industry leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This product is designed to provide precise voltage regulation with low noise, high accuracy, and high reliability, making it an ideal choice for sensitive RF and analog circuitry that requires a clean power supply.

The MIC2807-NNYML-TR offers two independently controlled output voltages, which can be adjusted by external resistors. Each channel is capable of delivering up to 150mA of continuous current, which is suitable for a wide range of applications. The device features a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage, thereby extending battery life in portable applications.

One of the key benefits of the MIC2807-NNYML-TR is its low quiescent current, which reduces power consumption when the device is in standby mode. This characteristic is particularly important for battery-powered devices where energy efficiency is critical. The LDO also includes a fast transient response, which helps maintain stable output voltage during rapid changes in load, ensuring reliable performance for sensitive electronic components.

The MIC2807-NNYML-TR is equipped with several safety features, including over-current protection and thermal shutdown, which protect the device and the system from damage due to abnormal operating conditions. Additionally, the regulator has an enable pin for each channel, allowing the user to control the power supply sequence and save power when a particular channel is not in use.

This product is available in a small 8-pin 2x2mm MLF® package, which is ideal for space-constrained applications. It is also provided in tape and reel packaging, with the suffix "-TR" indicating its suitability for automated assembly processes, making it a convenient choice for high-volume manufacturing.

Whether you're designing for consumer electronics, medical devices, or industrial applications, the MIC2807-NNYML-TR offers a compact, efficient, and reliable solution for your power regulation needs.
