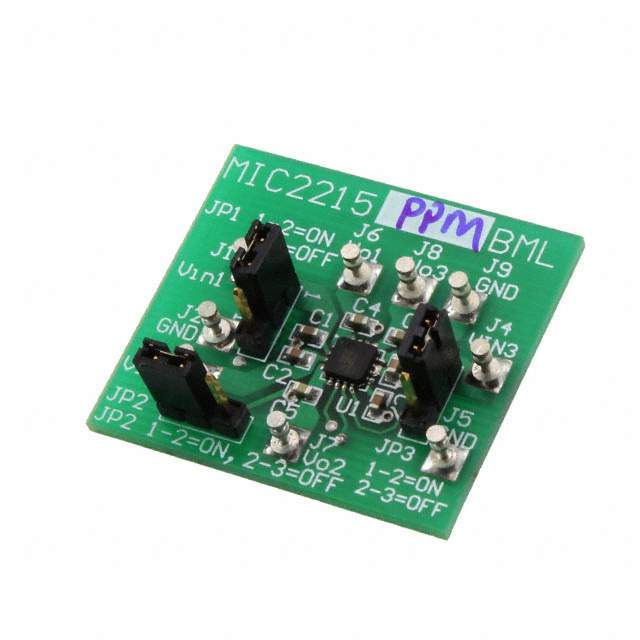

Introducing the MIC2215-PPMBML-EV Evaluation Board from Microchip Technology

The MIC2215-PPMBML-EV is a state-of-the-art evaluation board designed by Microchip Technology to showcase the performance and features of the MIC2215 Dual LDO with Power Good and Bypass Mode. This evaluation board is an excellent tool for engineers and designers who wish to assess the capabilities of the MIC2215 LDO in their own applications.

Key Features of the MIC2215-PPMBML-EV Evaluation Board

• High-Performance Dual LDO: The board features the MIC2215, a dual low-dropout regulator designed for high-performance applications that require a low-noise power supply.
• Adjustable Output: With the MIC2215, users have the flexibility to adjust the output voltage to meet the requirements of their specific application.
• Power Good Indicators: The evaluation board includes 'Power Good' output indicators that provide real-time status feedback to ensure the system is operating within the acceptable voltage range.
• Bypass Mode Functionality: The MIC2215 incorporates a bypass mode that allows the device to pass the input voltage directly to the output under certain conditions, improving efficiency.
• Robust Protection Features: The device includes built-in current limit and thermal shutdown features to protect the system from damage due to overcurrent or excessive temperature.
• Compact Design: The MIC2215-PPMBML-EV is designed with a small footprint, making it easy to integrate into existing systems without taking up much space.

Applications

The MIC2215-PPMBML-EV is ideal for a wide range of applications where clean and stable power is essential. This includes, but is not limited to:

• RF Modules
• Portable Devices
• Medical Equipment
• Audio Applications
• Industrial Controls

Whether you're developing sensitive RF circuits, designing portable medical devices, or integrating power supplies into audio systems, the MIC2215-PPMBML-EV provides the reliability and performance needed for your critical applications.

With the MIC2215-PPMBML-EV evaluation board, Microchip Technology offers designers a convenient and efficient way to test and validate the MIC2215 LDO's features, enabling quicker development cycles and a faster time-to-market for their products.
