Microchip Technology KSZ8993M-TR Integrated 3-Port 10/100 Managed Switch with PHYs

The KSZ8993M-TR from Microchip Technology is a highly integrated 3-port switch on a chip, designed for cost-effective network applications. It combines a 2-port switch and PHYs, making it ideal for managing and directing traffic in networked devices.

Key Features:

• Integrated Switching Core: The device features a high-performance non-blocking switch fabric that ensures fast data processing with minimal packet loss.
• PHY Transceivers: It includes two 10/100BASE-T/TX transceivers with HP Auto MDI/MDI-X, supporting automatic detection and correction for straight-through and crossover cables.
• Advanced Management: The KSZ8993M-TR supports various management interfaces, including MIIM (MII Management Interface), SPI (Serial Peripheral Interface), and I²C for flexible and efficient system control.
• QoS and VLAN Support: Quality of Service (QoS) features enable prioritization of traffic, which is essential for multimedia and VoIP applications, while VLAN support enhances network segmentation and security.
• Energy Efficient: With Energy Efficient Ethernet (EEE) capabilities, the KSZ8993M-TR can reduce power consumption during periods of low data activity, contributing to energy savings for the overall system.
• Robust Security Features: The device includes features like MAC address filtering, network storm protection, and DoS attack prevention to ensure a secure network environment.

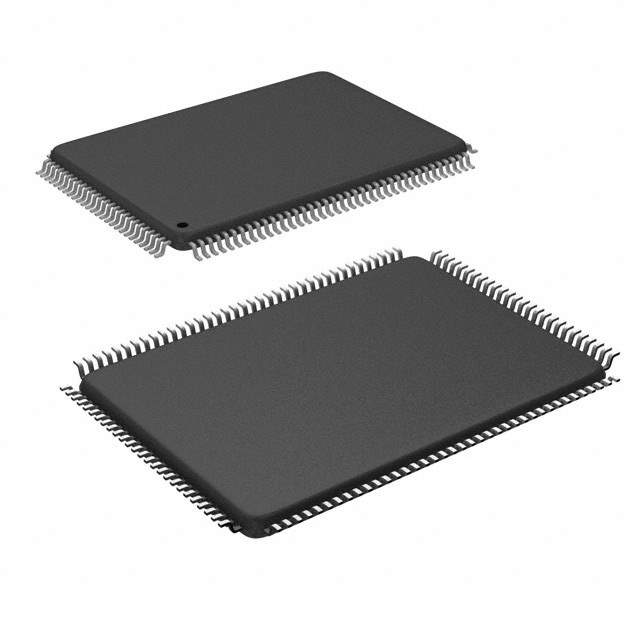

• Compact Form Factor: Available in a compact 128-pin PQFP package, the KSZ8993M-TR saves valuable board space and is suitable for embedded applications.

Applications:

The KSZ8993M-TR is versatile and can be used in a range of applications, including enterprise and industrial networking, home networking equipment, integrated broadband routers, and managed network switches. Its integrated features and compact design make it an excellent choice for developers looking to implement reliable network connectivity with ease.
