Maxim Integrated's MAX4745ELB+T Low-Voltage, Quad SPST, CMOS Analog Switch

The MAX4745ELB+T from Maxim Integrated is a versatile and efficient solution for routing analog or digital signals in a wide range of applications. This compact, quad single-pole single-throw (SPST) analog switch operates with a single supply voltage ranging from +1.6V to +3.6V, making it ideal for battery-powered and portable devices where power conservation is crucial.

With its low on-resistance of just 0.6 ohms (typical) at +3V, the MAX4745ELB+T ensures minimal signal distortion and power loss, which is essential for maintaining signal integrity in critical applications. Moreover, the device boasts a high off-isolation of -75dB at 1MHz and crosstalk of -85dB at 1MHz, which provides excellent signal isolation, preventing unwanted interference between channels.

The MAX4745ELB+T is designed with a unique feature set that includes break-before-make switching action, preventing signal disruption during channel transitions. Additionally, the device is TTL/CMOS logic compatible, allowing for seamless integration with a wide range of microcontrollers and digital systems.

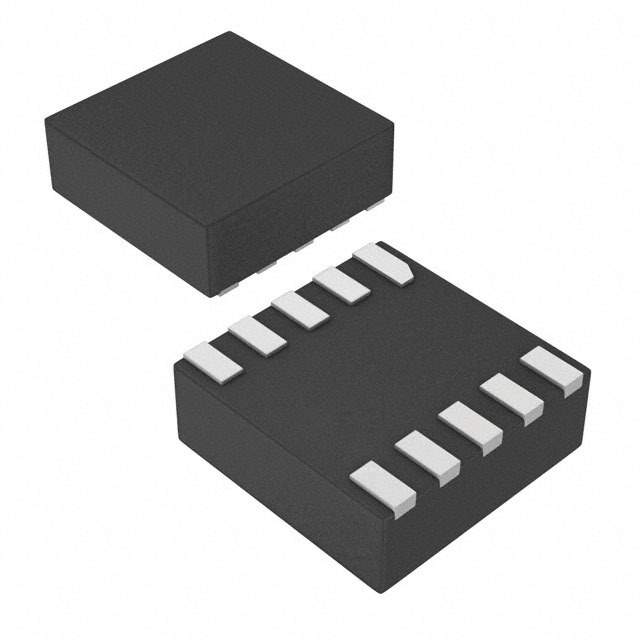

For enhanced durability and long-term reliability, the MAX4745ELB+T is specified over the extended -40°C to +85°C temperature range, making it suitable for use in harsh environmental conditions. The device comes in a space-saving, 10-pin µDFN package, which is highly beneficial for designs where board space is at a premium.

Applications of the MAX4745ELB+T are diverse and include signal routing in audio and video equipment, communication systems, data acquisition systems, and portable instruments. Its excellent performance characteristics also make it a good fit for medical equipment, where precision and reliability are paramount.

Maxim Integrated's commitment to quality ensures that the MAX4745ELB+T analog switch meets the stringent requirements of modern electronic designs, providing designers with a reliable, high-performance switching solution that enhances the overall efficiency and functionality of their products.
